TD500N18KOF Moduł diodowo-tyrystorowy | INFINEON

Thyristor / Diode | Infineon

THYRISTOR / DIODE

Table. Electrical Data


TypeITAVM/TC
[A/°C]
VDRM
[V]
I TSM
[A]
I2t
[A2 xl03]
tq
[ms]
dv/dt
[V/ms]
RthJC
[°C/W]
RthCK
[°C/W]
Casing
Base = 20 mm TD61N 60/85 1200 ... 1600 1400 9,8 120 F = 1000 0,52 0,16 TP20
TD92N 92/85 1000 ... 1600 1800 16,2 150 F = 1000 0,37 0,1 TP20
TD104N 104/85 1000 ... 1400 1800 16,2 150 F = 1000 0,37 0,1 TP20
Base = 25 mm TD70N 70/85 1600 ... 2400* 1450 10,5 300 F = 1000 0,35 0,08 TP25
TD106N 106/85 1000 ... 1800 2000 20 150 F = 1000 0,33 0,08 TP25
Base = 30 mm TD121N 121/85 1200 ... 2000* 2350 27,6 180 F = 1000 0,23 0,06 TP30
TD131N 131/85 1200 ... 1600 3200 51,2 180 F = 1000 0,23 0,06 TP30
Base = 34 mm TD122N 122/85 1600 ... 2200 2950 43,5 300 F = 1000 0,2 0,06 TP34
TD140N 140/85 1600 ... 2200 3200 51,2 300 F = 1000 0,19 0,06 TP34
TD142N 142/85 1200 ... 1600 4100 84 200 F = 1000 0,22 0,06 TP34
TD162N 162/85 1200 ... 1600 4400 97 200 F = 1000 0,2 0,06 TP34
TD180N 180/85 1200 ... 1600 4100 84 200 F = 1000 0,2 0,06 TP34
Base = 50 mm TD150N 150/85 1800 ... 2600 4000 80 300 F = 1000 0,13 0,04 TP50
TD170N 170/85 1000 ... 1800 4600 106 250 F = 1000 0,13 0,04 TP50
TD215N 215/85 1800 ... 2400* 6300 198 300 F = 1000 0,13 0,04 TP50
TD250N 250/85 1000 ... 1800 7000 245 250 F = 1000 0,13 0,04 TP50
TD251N 250/85 1000 ... 1800 8000 320 250 F = 1000 0,13 0,04 TP50
TD285N 285/92 1200 ... 1600 8000 320 250 F = 1000 0,13 0,04 TP50
TD330N 330/85 1200 ... 1600 8000 320 250 F = 1000 0,117 0,04 TP50
Base = 60 mm TD240N 240/85 2800 ... 3600 5500 151 350 F = 1000 0,078 0,02 TP60
TD310N 310/85 2000 ... 2600 9000 405 300 F = 1000 0,078 0,02 TP60
TD400N 400/85 2000 ... 2600 11000 605 300 F = 1000 0,065 0,02 TP60
TD425N 425/85 1000 ... 1800* 12500 781 250 F = 1000 0,078 0,02 TP60
TD430N 430/85 1800 ... 2400* 12000 720 300 F = 1000 0,065 0,02 TP60
TD500N 500/85 1000 ... 1800 14500 1051 250 F = 1000 0,065 0,02 TP60
Caution:
*Highest voltage for special order
Net price in

IT(AV) [22]

Voltage URRM [8]

Manufacturer [1]

Photo Manufacturer No.
Manufacturer
Catalog No.
Product type IT(AV) Voltage URRM Check stock aviability Quantity [pcs.] Net price $ [USD] / pcs. Order
Check
0
from 2 612.48
Check
0
from 2 864.42
Check
0
from 2 1624.58
Check
0
from 2 499.54
Check
0
from 2 503.88
Check
0
from 2 516.91
Check
0
from 2 651.57
Check
0
from 2 590.76
Check
0
from 2 625.51
Check
0
from 2 582.07
Check
0
from 2 920.89
Check
0
from 2 590.76
Check
0
from 2 755.82
Check
0
from 2 681.98
Check
0
from 2 786.23
Check
0
from 2 825.32
Check
0
from 2 2345.65
Check
0
from 2 799.26
Check
0
from 2 794.92
Check
0
from 2 860.07
Check
0
from 2 781.88
Check
0
from 2 877.45
Check
0
from 2 1802.68
Check
0
from 2 899.17
Check
0
from 2 1846.12
Check
0
from 2 1281.42
Check
0
from 2 1385.67
Check
0
from 2 1298.80
Check
0
from 2 1224.95
Check
0
from 2 490.85
Check
0
from 2 499.54

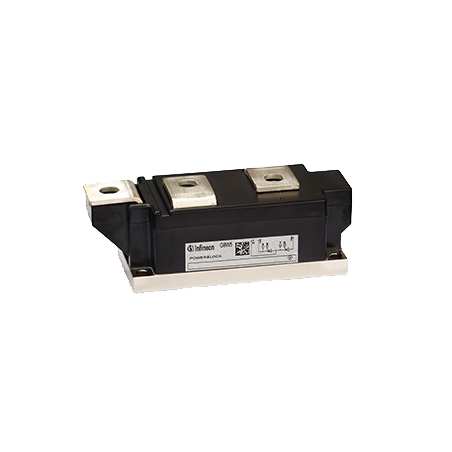

TD500N18KOF Moduł diodowo-tyrystorowy | Infineon

Manufacturer No.: TD500N18KOF

Catalog No.: C-X-X-079331

Manufacturer: Infineon

Catalogue data

IT(AV)
500 A
Voltage URRM
1800 V

Price $ [USD] / pcs.

Quantity [pcs.] Net price tax_class
from 2 1.298,80 PLN 1.597,52 PLN

Order

Stock aviability: Check
0

Contact

tel. (+48) 22 70 35 173
czynne_i@dacpol.eu

Please calculate 8 plus 7.
