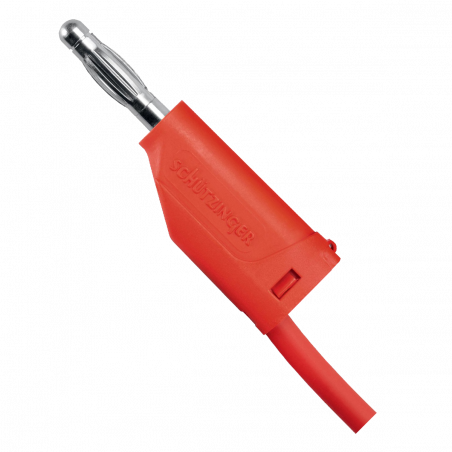

Banana plugs
  • Banana plugs

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Schützinger

Banana plugins

Example parameter

General data Technical data
  Catalogue number Colour Insulation type Tip Resistance Nominal voltage Current Operation temperature
standard plug
FK 02L(Colour)
nickled contacts
black red blue
  yellow
green
PA 6.6
(Polyamide)
soldered 0,5mm2 3 mΩ 30V AC
60V DC
10A -25°C … +90°C
Plug with socket for a cable FK 11L..
( Colour)
nickled contacts
Connector
KU 02L/ nickled contacts
