Manufacturer: NMB Minebea

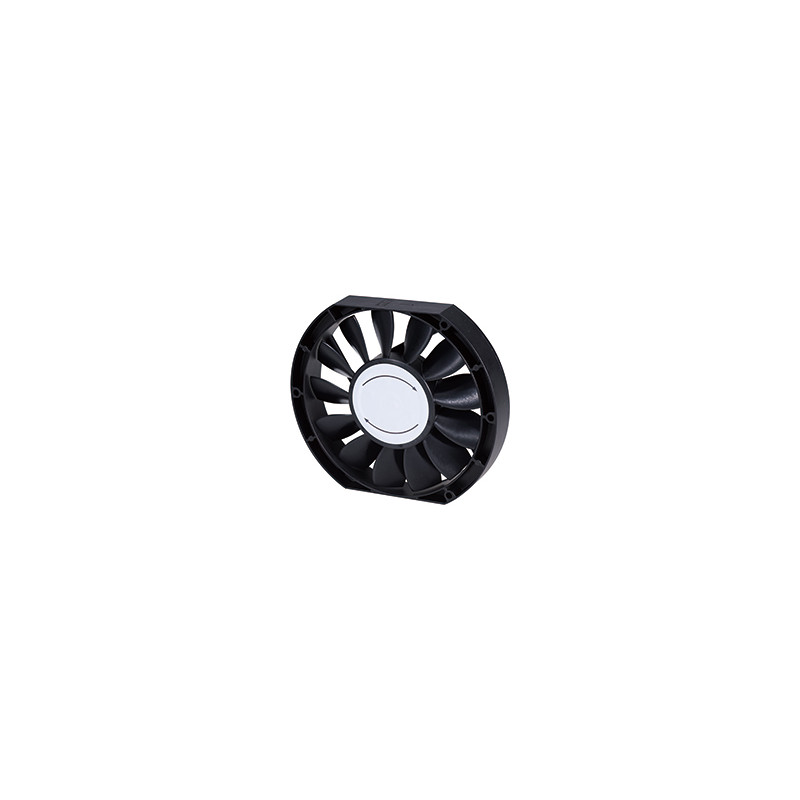

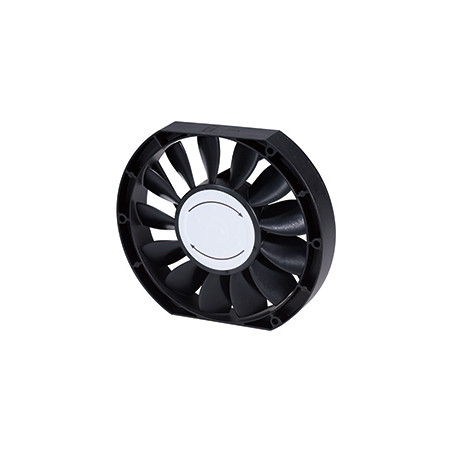

15025PA-24N-AA-00 DC Axial Fan 24V 23,8W

  • 15025PA-24N-AA-00
  • Dimensions 150 x 150 x 25 mm
  • Rated voltage 24
  • Input power 23,8
  • Speed 3500
  • Current draw 0,99
  • Air flow 6,4
  • Static Pressure 127
  • Noise Level 61,5
  • Fan type DC radial
  • Voltage range 18,0 ... 26,4
  • Type of voltage DC
  • Weight 500 g
