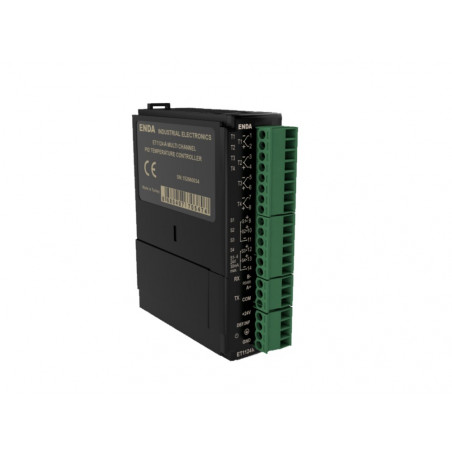

ENDA ET1124 DIN RAIL MOUNTED FOUR INPUT PID TEMPERATURE CONTROLLER
ENDA ET1124 DIN RAIL MOUNTED FOUR INPUT PID TEMPERATURE CONTROLLER
ENDA ET1124 DIN RAIL MOUNTED FOUR INPUT PID TEMPERATURE CONTROLLER

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Sisel

ENDA ET1124 DIN RAIL MOUNTED FOUR INPUT PID TEMPERATURE CONTROLLER

  • Rail mounting
  • Selectable dual-set value
  • Selectable thermocouple types (J, K, L, T, S, R) or 2-wired PT100 (order option)
  • PID control function with accurate self-tuning
  • Selftune for automatic PID calculation or manually enter PID parameters if known
  • Control outputs can be cancelled (to use for measurement purposes)
  • Four SSR temperature control outputs
  • SSR outputs can be controlled manually
  • Soft-Start function
  • Communication via RS-485 ModBus protocol
  • Selectable heating/cooling control
  • Offset feature for input
  • In the case of sensor failure, periodical running or relay state selection
  • Programmable and firmware update via ModBus
  • CE marked according to European Norms

Environmental Conditions

Ambient/Storage Temperature 0...50 ºC / -25...70 ºC
Relative Humidity 80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C
Protection Degree According to EN 60529 IP20
Height Max. 2000m

Electrical Characteristics

Supply 24V DC 20%
Power Consumption Max. 5VA
External Connections Plug-in terminals
Scale Pt-100 resistance thermometer -199.9...600.0 °C / -200...600 °C
J (Fe-CuNi) thermocouple -30.0....600.0 °C / -30....600 °C
K (NiCr-Ni) thermocouple -30.0...999.9 °C / -30...1300 °C
L (Fe-CuNi) thermocouple -30.0....600.0 °C / -30....600 °C
T (Cu-CuNi) thermocouple -30.0...400.0 °C / -30....400 °C
S (Pt10Rh-Pt) thermocouple -40...1700 °C
R (Pt13Rh-Pt) thermocouple -40...1700 °C
Accuracy Pt-100 (resistance thermometer): ±0.2% (of full scale) ±1 digit
Thermocouples: ±0.5% (of full scale) ±1 digit
Line Resistance Max. 100ohm for thermocouple. Max. 1ohm for 2-wired Pt-100

Outputs

S1....S4 SSR Control Outputs Four outputs, Max. 24 VDC ±20% , 30mA short circuit protected SSR control

Control

Control Type Set-point control for 4 zone
Control Algorithm On-Off, P, PI, PD, PID (selectable)
A/D Converter 14 bit
Sampling Time 200ms
Proportional Band Adjustable between 0.0% and 100.0%. If Pb=0%, On-Off control is selected
Control Period Adjustable between 1 and 125s
Hysteresis Adjustable between 1 and 50 °C/F
Output Power The ratio of power at a set point can be adjusted between 0% and 100%

Housing

Mounting Method Rail mounting
Dimensions G29xY90xD64 mm
Weight Approx. 200g (after packaging)
Enclosure Material Self extinguishing plastics
