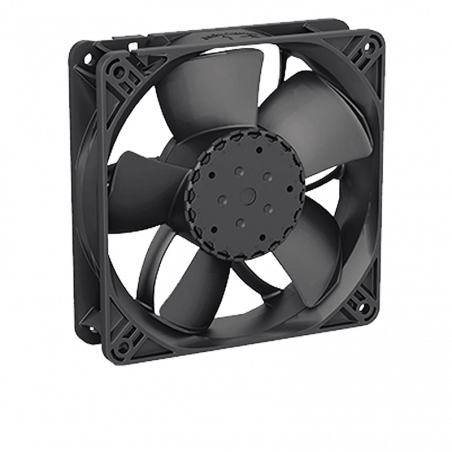

4412 N Compact axial fan
  • 4412 N Compact axial fan
  • 4412 N Compact axial fan

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

4412 N Compact axial fan

  • 4412 N
  • Cable Przewody AWG 24, TR 64, pozbawione izolacji i cynowane.
  • Air flow direction Wydech nad rozpórkami
  • Dimensions 119 x 119 x 38 mm
  • Housing material Tworzywo PBT wzmocnione włóknem szklanym
  • Nominal voltage 12
  • Speed 3650
  • Power input 5.3
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 205
  • Sound pressure level 46
  • Voltage range 7 .. 14
  • Bearing Łożysko kulkowe
  • Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 62500 h
  • L10 lifetime at maximum temperature 30000 h
  • Sound power level 5.6
  • Type of voltage DC
  • Motor protection Ochrona przed odwrotną polaryzacją i zablokowanym wirnikiem.
  • Weight 0.250 kg
