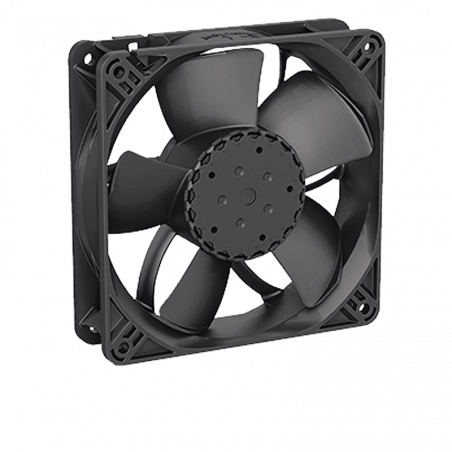

8550 A Compact axial fan
  • 8550 A Compact axial fan
  • 8550 A Compact axial fan
  • 8550 A Compact axial fan

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

8550 A Compact axial fan

  • 8550 A
  • Cable 2 wtyczki płaskie 2,8 x 0,5 mm
  • Air flow direction Wlot nad rozpórkami
  • Dimensions 80 x 80 x 38 mm
  • Housing material Metal
  • Phase 1~
  • Nominal voltage 230
  • Frequency 50
  • Speed 2700
  • Power input 12
  • Min. ambient temperature -10
  • Max. ambient temperature 70
  • Air flow 48
  • Sound pressure level 36
  • Bearing System łożysk ślizgowych Sintec
  • Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
  • Rotor material Metal
  • Lifetime L10 at 40 ° C 52500 h
  • L10 lifetime at maximum temperature 25000 h
  • Sound power level 5
  • Type of voltage AC
  • Approval VDE, CSA, UL, CE
  • Motor protection Chroniony przed przeciążeniem przez ochronę impedancji
  • Weight 0.490 kg
