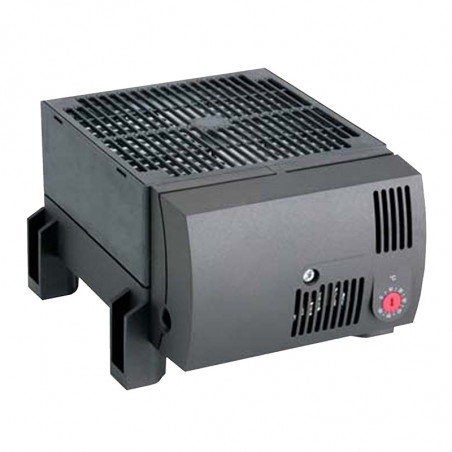

High efficient heating blow pipe CR 030 - 700 W, 950 W
High efficient heating blow pipe CR 030 - 700 W, 950 W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

High efficient heating blow pipe CR 030 - 700 W, 950 W



Technical data

Heating element  high performance cartridge
Temperature safety cut-out  with automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure
Heater body  extruded aluminium profile
Axial fan, ball bearing  airflow 160 m³/h, free flow service life 50,000 h at +25 °C (+77 °F)
Connection  2-pole max. 2.5 mm², clamping screw with strain relief, torque 0.8 Nm max.
Casing  plastic according to UL94 V-0, black
Mounting  screw fixing (M5)
Fitting position  vertical airflow (air outlet up)
Dimensions  168 x 145 x 100 mm
Weight  approx. 1.4 kg
Operating¹/Storage temperature  -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity  max. 90 % RH (non-condensing)
Protection type/Protection class  IP20 / II (double insulated)
Note  other heating capacities from 200 W up available on request

Dimensions [mm]

Catalogue number

Art. No.  Model  Operating voltage  Heating capacity  Recommended pre-fuse T
(time-delay) 		 Setting range²  Approvals
03051.0-00  Fan Heater with thermostat  AC 230 V, 50/60 Hz  950 W  6.3 A  0 to +60 °C  VDE+ UL File No. E234324 +EAC
03051.0-02  Fan Heater with hygrostat  AC 230 V, 50/60 Hz  950 W  6.3 A  65 % RH, factory-set  VDE+ UL File No. E234324 +EAC
03059.9-00  Fan Heater with thermostat  AC 120 V, 50/60 Hz  950 W  10.0 A  +32 to +140 °F  UL File No. E234324 +EAC
