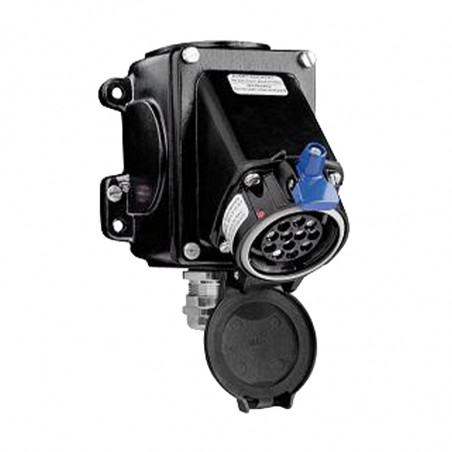

Connectors with disconnect switch

PXN12C connectors up to 10A, 11-pin

  • Number of contacts: 11+ E
  • Rugged IK09 metal housing
  • Voltage-free switching
  • Silver contacts with front pressure
  • Type "e" ignition protection
  • Certified according to ATEX 94/9/EC
  • IEC 60079-0/-7, IEC 61241-0/-1
  • IP 66


Accessories

Socket to be built Build plugin
A/V Contacts Input Ø mm Article no. A/V Contacts Input Ø mm Article no.
10 A / 220 V 11 + E M32 12-21 06 M0111 10 A / 220 V 11 + E M32 12-21 06 M0111
10 A / 220 V 11 + E M25 9-16 06 M0111 25M 10 A / 220 V 11 + E M25 9-16 06 M0111 25M
Mount socket Buildable plugin
10 A / 220 V 11 + E 06 M7111 10 A / 220 V 11 + E 06 M9111
Throw-through slot Pass-through plug
10 A / 220 V 11 + E M32 12-21 06 M0111 10 A / 220 V 11 + E M32 12-21 06 M0111
10 A / 220 V 11 + E M25 9-16 06 M0111 25M 10 A / 220 V 11 + E M25 9-16 06 M0111 25M


DXN37C Connectors up to 5A 36-pin

  • Number of contacts: 36 + E
  • Rugged IK09 metal housing
  • Voltage-free switching
  • Silver contacts with front pressure
  • Type "e" ignition protection
  • Certified according to ATEX 94/9/EC
  • IEC 60079-0/-7, IEC 61241-0/-1
  • IP 65

Accessories

Socket to be built Build-in plug
A/V Contacts Input Ø mm Item No. A/V Contacts Input Ø mm Item No.
5A / 220 V 36 + E M40 16-27 36 M0361 5A / 220 V 36 + E M40 16-27 36 M6361
5 A / 220 V 36 + E M32 12-21 36 M0361 32M 5 A / 220 V 36 + E M32 13-21 36 M6361 32M
Mount socket Built-in plugin
5A / 220 V 36 + E 36 M7361 5 A / 220 V 36 + E 36 M9361
Throw-through slot Pass-through plug
5 A / 220 V 36 + E M40 16-27 36 M3361 5 A / 220 V 36 + E M40 16-27 36 M1361
5 A / 220 V 36 + E M32 12-21 36 M3361 32M 5 A / 220 V 36 + E M32 12-21 36 M1361 32M


DXN 16A-200A 5-Pin Power Connectors

  • according to IEC/EN 60309-1 and 60309-4
  • very compact design
  • polyamide housing, IK08 impact resistance
  • silver contacts with front pressure
  • certified according to ATEX 94/9/EC
  • type "ed" ignition protection
  • IEC 60079-0/-1/-7, IEC 61241-0/-1
  • DX connectors in metal, 16 to 200A, on request
  • IP 66/67


Basic elements

Built-in
socket		 A/V Pin arrangement Article no.
16–20 A / 230 V 1 + N + E 25 14015
16–20 A / 400 V 3 + E 25 14013
16–20 A / 400 V 3 + N + E 25 14017
32 A / 230 V 1 + N + E 25 34015
32 A / 400 V 3 + E 25 34013
32 A / 400 V 3 + N + E 25 34017
32 A / 400 V 3 + N + E + 2 room degrees 25 34017 972
63 A / 230 V 1 + N + E 25 64015
63 A / 400 V 3 + E 25 64013
63 A / 400 V 3 + N + E 25 64017
63 A / 400 V 3 + N + E + 2 room degrees 25 64017 972
Other voltages (up to 750 V),
other contact combinations available on request
Built-in socket A/V Contact layout Art. no.
16–20 A / 230 V 1 + N + E 2 518 015
16–20 A / 400 V 3 + E 2 518 013
16–20 A / 400 V 3 + N + E 2 518 017
32 A / 230 V 1 + N + E 2 538 015
32 A / 400 V 3 + E 2 538 013
32 A / 400 V 3 + N + E 2 538 017
32 A / 400 V 3 + N + E + 2 room degrees 2 538 017 972
63 A / 230 V 1 + N + E 2 568 015
63 A / 400 V 3 + E 2 568 013
63 A / 400 V 3 + N + E 2 568 017
63 A / 400 V 3 + N + E + 2 room degrees 2 568 017 972
Other voltages (up to 750 V),
other contact combinations available on request


Accessories

30° surface-mount adapter, plastic Modular adapter for 70° superstructure, plastic
Load capacity /Input Article no. Load capacity /Input Article no.
for 16–20 A / M20 25 1AB53 for 16–20 A / M20 25 1AB58
for 32 A / M25 25 3AB53 25P for 32 A / M25 25 3AB58
for 63 A / M25 25 6AB53 for 63 A / M32 25 6AB58
30° Plastic Surface-Mounted Adapter 70° Plastic Modular Surface-Mounted Adapter
for 16–20 A 25 1A027 for 16–20 A 25 1A757
for 32 A 25 3A027 for 32 A 25 3A757
for 63 A 25 6A027 for 63 A 25 6A757
Plastic handle
for 16–20 A / M20 25 1A753
for 16–20 A / M25 25 1A253 25P
for 32 A / M25 25 3A783
for 63 A / M32 25 6A253 32P

Rated voltage Cable cross-section, max. mm2
400 V 500 V 690 V multi-wire single wire auxiliary contacts
DXN1 20 A 20 A - 2.5 4 -
DXN3 32 A 32 A 32 A 10 16 -
DXN3 + 2 auxiliary contacts 32 A 32 A - 10 16 2.5
DXN6 63 A 63 A 63 A 16 25 -
DXN6 + 2 auxiliary contacts 63 A 63 A - 16 25 2.5


Single-pole connectors up to 700A up to 1000V AC/ 1500V DC



  • Shock protection from live parts
  • 5 fixed, mechanically unchanged positions for each phase: L1, L2, L3, N + E
  • IK08 glass-fiber reinforced thermoplastic housing
  • Silver contacts with front pressure for optimal current transfer
  • Main current circuit: max. 700 A / 1000 V AC / 1500 V DC, connection 95 – 400 mm2
  • Current contact circuit: max. 6 A / 230 V, 1.5 – 4 mm2 connection
  • electromechanical locking system
  • additional protection with different colors
  • IP66/67

Built-in socket (Without cable lug/sleeve) Modular adapter for 70° superstructure, plastic
Article no.
Less
Read more
