Manufacturer: ZIEHL

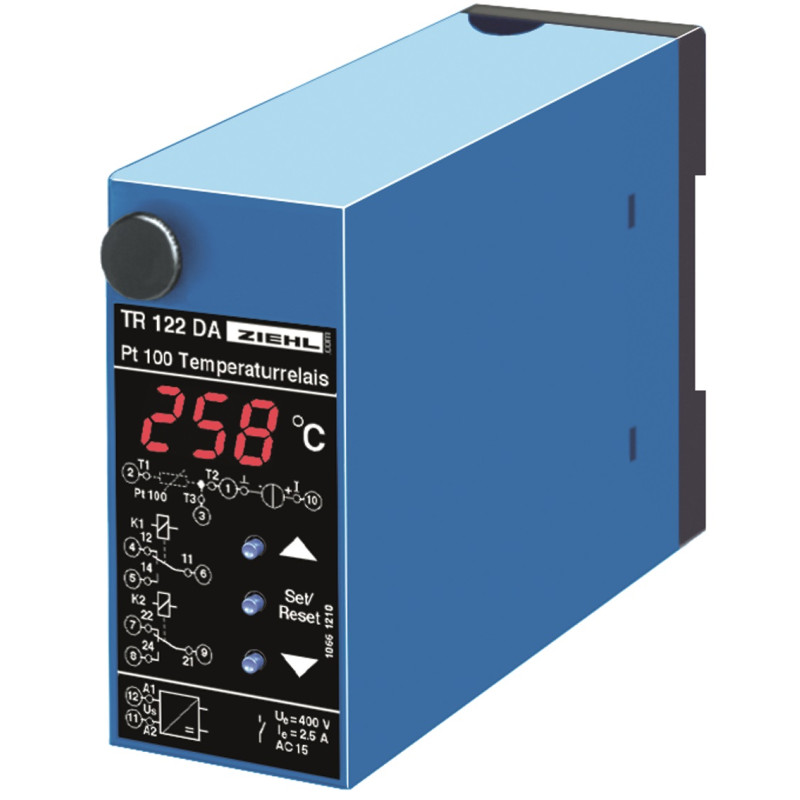

TR122D - Temperature Relay - T224127

  • T224127
  • Product Type IP54 motor, IP20 electronics
  • Supply voltage AC/DC 24 - 240 V
  • Execution Motor IP44, electronics IP20 / depending on mounting and position
  • Additional information PA 6.6 material reinforced with glass fiber
  • Certificate IP 30 (IP 44, with bracket and cover)
  • Output function Analog Outputs 0/4-20 mA, 0-10 V, Outputs/Relays

Switching-Relays Typs TR 122 D(A) monitor the input-signal for 2 limits. The TR 122 DA transduces the measured temperature/resistance to a proportional DC-current.


Applications of the TR 122 D(A) are:

  • Monitoring of temperatures with pre-alarm and alarm in machines and plants
  • Controlling of temperatures e.g. for heated sample gas lines or refrigerating plants
  • Transducer for Pt 100 (RTD) and resistance (TR 122 DA only)

Overview of Functions

  • 1 input sensor, Pt 100 (RTD) or resistance
  • Measuring ranges -199...850°C / 0...850 Resolution 0.1 °C / within the ranges -19.9...99.9 °C / 0-99.9
  • 2 relay outputs (each 1 change-over contact)
  • 1 analog output 0/4-20 mA scaleable (TR 122 DA only, not potentially separated from the inputs)
  • Universal power supply AC/DC 24-240 V
  • Storage and display of the measured MIN- and MAX-values
