Manufacturer: ZIEHL

TF101ZG2 - Pt 100 Temperature Sensors - T223137

  • T223137
  • Additional information Made of metal
  • Measured value Impedance protection

Temperature sensors of the TF101 series are resistance thermometers (RTD sensors) and contain a platinum measuring resistor in accordance with EN 60751 / IEC 60751. It has a high long-term stability and the measurement is accurate over a long period of time with temperature sensors of this type series. The close tolerance of the measuring resistors makes it possible to replace the sensors without having to recalibrate the connected measuring or switching devices while retaining the measuring cable length.

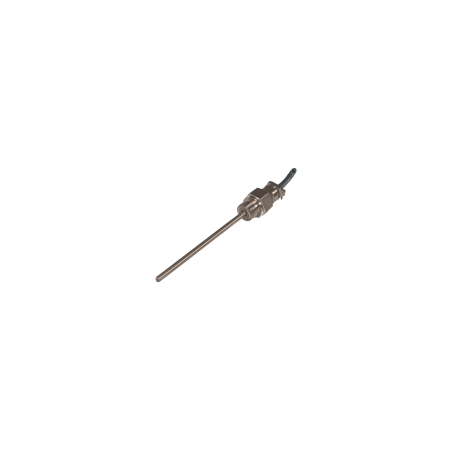

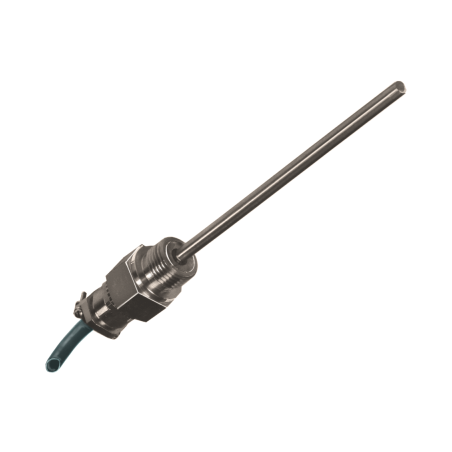

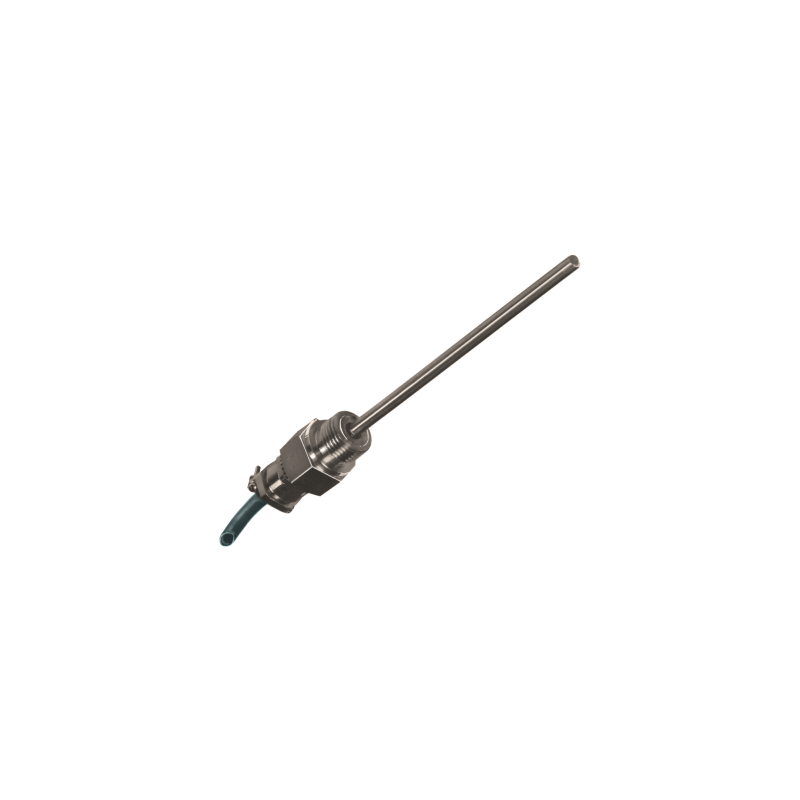

Platinum resistance temperature sensor built into steel tube V4A, 1/2 inch, suitable for installation in pipes.

Thermal response time T0.9in the air 255 s, in water 45 s.

Connection flat plug 2.8 mm, Gasket IP55, clamping diameter 8-12 mm, cable connecthead max. 100 °C

Suitable for transmission in 2- or 3-wire technique.

Weight 120 g
(Dimensions see Dimension illustrations)
