Manufacturer: TEXA industries

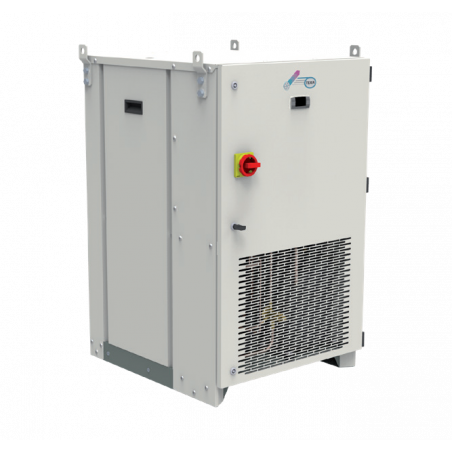

TCU15 50Hz Chillers Industrial to liquids polluted or dirty

  • TCU15 50Hz
  • Supply voltage 230V (+/-10%) 1ph 50/60Hz V ph Hz
  • Width 595 mm
  • Height 995 mm
  • Depth 678 mm
  • Frequency 50 Hz
  • Sound pressure level 57 ... 60 dB(A)
  • Air flow rate (Axial fan) 2300 ... 2650 m3/h
  • Air flow rate (Centrifugal fan optional) 2100 ... 2400 m3/h
  • Ambient temperature operating limits 15 ... 45 °C
  • Head available 250 Pa
  • Compressor type tłokowy
  • Digital thermostat TX110
  • Fan type Osiowy
  • Type of fluid Zanieczyszczone płyny (emulsje olejów i olejów mineralnych)
  • IN / OUT fluid connections 3/4"
  • IP class 44 IP
  • Current draw 5.6 A
  • Power consumption 1030 W
  • The maximum size of the oil contamination 150 μm
  • Nominal head available 3.2 bar
  • Nominal / maximum fluid flow rate 14 ... 55 l/min
  • Pump type Odśrodkowy
  • Quantity 1 no.
  • Number of circuits 1 - 1 no.
  • Rated Cooling Capacity 1600 W
  • Refrigerant gas R134a HFC
  • Secondary supply voltage 230 V
  • Adjustable fluid temperature range 25 ... 40 °C
  • Temperature accuracy /- 2 K
  • Net weight (approximate) 130 kg
