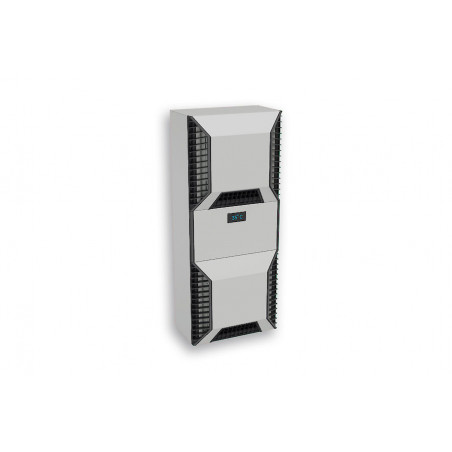

841220001 Wardrobe refrigerator - KG 8412- 400V
  • 841220001 Wardrobe refrigerator - KG 8412- 400V

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

841220001 Wardrobe refrigerator - KG 8412- 400V

  • 841220001
  • Dimensions 950 x 395 x 250 (55+195) mm
  • Working temp. range 10°C - 60°C
  • Voltage frequency 380-415 V 50 Hz 3~ 400-460 V 60 Hz 3~
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 8.2 A
  • Max. Current 2.0 A
  • Max. Power 1.18 kW
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 1.50 kW @ 50 Hz 1.65 kW @ 60 Hz
  • Cooling capacity of L35L50 1.30 kW @ 50 Hz 1.45 kW @ 60 Hz
  • Compressor Tłok obrotowy
  • Refrigerant Charge 247 g / 8.7 oz.
  • High / Low Pressure 30 / 6 bar 435 / 88 psi
  • Current L35L35 1.7 A
  • Nominal power L35L35 710 W @ 50 Hz 925 W @ 60 Hz
  • UL temperature range 10°C - 60°C
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 550 / 850 m³/h Obieg powietrza szafy - 350 / 850 m³/h
  • Weight 40 kg
Features
modern industrial design
same enclosure cutout like 825 W und 1.2 kW cooling units
enhanced IP protection class of IP56 / UL Type 4
built-in electrical condensate evaporator
maintanence free
wall mounted or recessed installation
Brand Name SoliTherm
Order Number 841220001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 56 / Type 12, 3, 3R, 4
Note Has the same cutout like KG 8508 and KG 8512
Approvals CE, cURus, cULus
