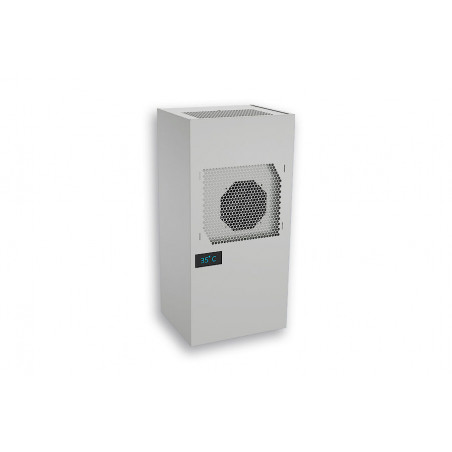

43082001 Air conditioner control cabinet - KG 4308-400V
  • 43082001 Air conditioner control cabinet - KG 4308-400V

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

43082001 Air conditioner control cabinet - KG 4308-400V

  • 43082001
  • Dimensions 651.4 x 315 x 260 mm
  • Rated current 540 W
  • Working temp. range 10°C - +55°C
  • Voltage frequency 400 / 460 V - 50/60 Hz 2~
  • Mounting methods Naścienny
  • Starting current 4.5 A
  • Max. Current 2.4 A
  • Max. Power 860 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 750 W @ 50 Hz 780 W @ 60 Hz
  • Cooling capacity of L35L50 580 W @ 50 Hz 610 W @ 60 Hz
  • Compressor Sprężarka tłokowa
  • Refrigerant Charge 230 g / 8.1 oz
  • Cut Out Dimension 635 x 275 mm
  • Current L35L35 1.6 A @ 50 Hz 1.3 A @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 435 / 550 m³/h Obieg powietrza szafy - 200 / 250 m³/h
  • Weight 33.7 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
optional condensate evaporation
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43082001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
