ADAM4000 series - I/O modules
ADAM4000 series - I/O modules

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: B&B Electronics

ADAM4000 series - I/O modules

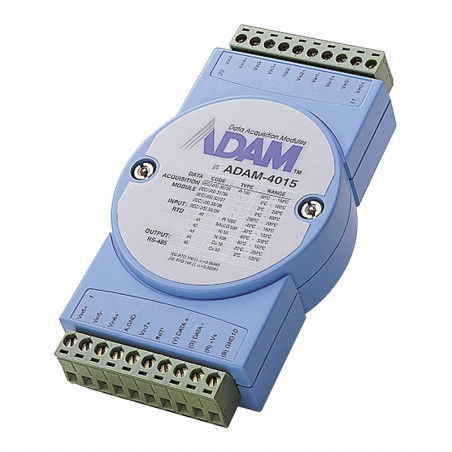

ADAM-4015 - 6AI Module (RTD, with Modbus/RTU support)


Features
  • Number of channels: 6
  • Resolution: 16 bits
  • Sensor type: Pt, Balco, Ni
  • Sensor connection: 2 or 3 wires
  • Measurement speed: max. 10/sec
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 1.2W
ADAM-4015

ADAM-4015

ADAM-4017+ - 8-channel analog input module (mV/V/mA, with support for Modbus/RTU)


Characteristics
  • Number of channels: 8 (all differential channels)
  • Resolution: 16 bits
  • Voltage input ranges: +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V
  • Current input ranges: +/-20mA, 4÷20mA (built-in 120ohm resistor)
  • Measurement rate: max. 10/sec
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 1.2W
ADAM-4017+

ADAM-4017+


NOTE: - Enabling the current range requires an entry in the module configuration and a jumper position (inside the housing)
- Input ranges are set independently for individual channels

ADAM-4019+ - 8-Channel Analog Input Module (TC/mV/V/mA, with Modbus/RTU support)


Features
  • Number of Channels: 8 (all differential channels)
  • Resolution: 16 bits
  • Voltage Input Ranges: +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V
  • Current Input Ranges: +/-20mA, 4÷20mA (built-in resistor 120ohm)
  • Supports thermocouples type: JKTERSB
  • Measurement speed: max. 10/sec
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 1.0W
ADAM-4019+

ADAM-4019+


NOTE: - Enabling the current range requires an entry in the module configuration and a jumper position (inside the housing)
- Input ranges are set independently for each channel

ADAM-4024 - 4-channel analog output module (V/mA, with Modbus/RTU support)


Characteristics
  • Number of channels: 4
  • Resolution: 12 bits
  • Voltage output ranges: ±10V
  • Current output ranges: 0÷20mA, 4÷20mA
  • Current output load capacity: max 500ohm
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 3W
ADAM-4024

ADAM-4024

ADAM-4051 - 16 Digital Input Module (with Modbus/RTU support)


Features
  • 16 digital inputs with a maximum input voltage of 50V
  • Optoisolation: 2.5kV
  • LED indication
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 1.0W
ADAM-4051
ADAM-4051

ADAM-4055 - Module 8 digital inputs and 8 digital outputs (with Modbus/RTU support)


Features
  • 8 digital inputs with a maximum input voltage of 50V
  • 8 open-collector digital outputs
  • Optoisolation (in/out): 2.5kV
  • LED indication
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: max 2.2W
ADAM-4055

ADAM-4055


NOTE: Input type (dry/wet contact) configurable for individual channels using internal configuration jumpers (see the user manual for details).

ADAM-4056S/4056SO - 12-channel digital output module (with support for Modbus/RTU)


Features
  • 12 digital SINK (open collector) outputs
  • Optoisolation: 5kV
  • LED indication
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 1W
ADAM-4056S/4056SO

ADAM-4056S/4056SO

ADAM-4068 - 8-Relay Output Module (with Modbus/RTU support)


Features
  • 8 Relay Outputs
  • Contacts: 4xNO, 4xNO+NC
  • Relay parameters:
  • AC: 0.5A@120V, 0.25A@240V
  • DC: 1A@30V, 0.3A@110V
  • LED indication
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 0.6W
ADAM-4068
ADAM-4068

ADAM-4069 - 8-Relay Output Module with Higher Power (with Modbus/RTU Support)


Features
  • 8 relay outputs
  • Contacts: 4xNO, 4xNO+NC
  • Relay parameters:
  • AC: 5A@250V
  • DC: 5A@30V
  • Communication interface: RS-485 (2-wire)
  • Protocol support: ADAM-ASCII and Modbus/RTU
  • Power supply: 10÷30VDC
  • Power consumption: 2.2W
ADAM-4069

ADAM-4069
