Manufacturer: Ebmpapst

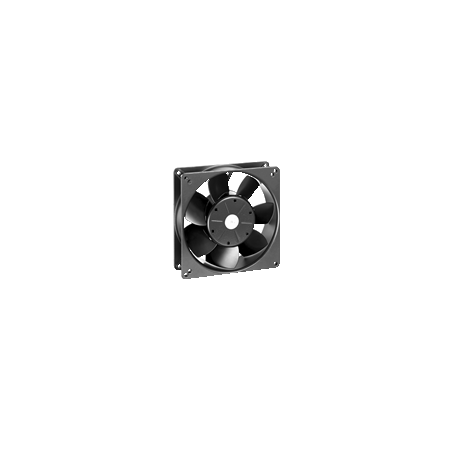

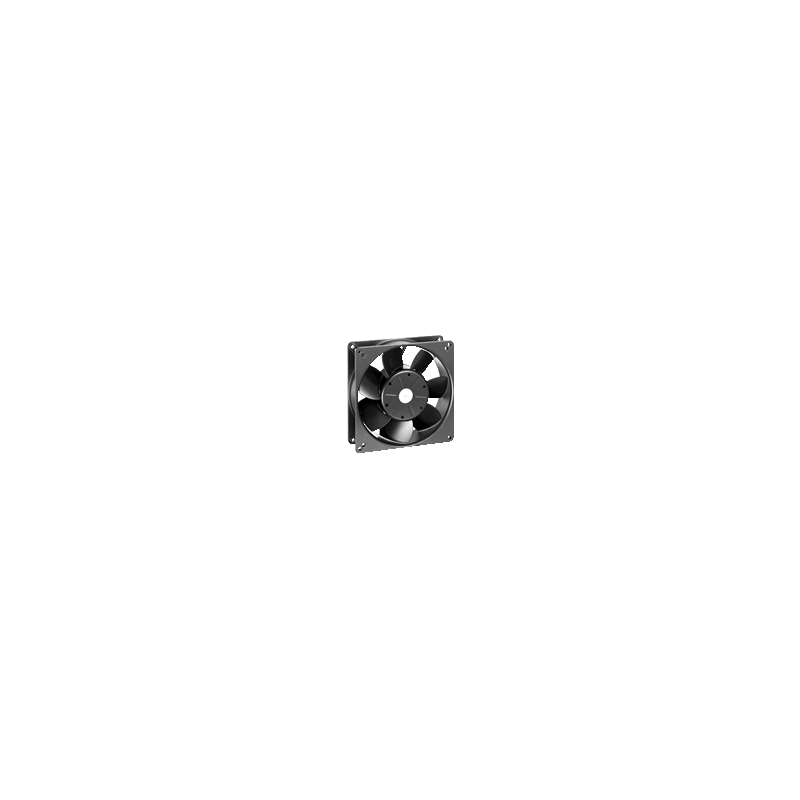

5118 N DC Axial Fan 48V 9.5W

  • 5118N
  • Air flow direction Exhaust through struts
  • Dimensions 135 x 135 x 38 mm
  • Housing material Die-cast aluminum
  • Input power 9,5
  • Nominal voltage 48
  • Speed 2900
  • Min. ambient temperature -25
  • Max. ambient temperature 72
  • Air flow 260
  • Fan type DC axial compact
  • Voltage range 24 ... 60
  • Rotor material Black painted steel sheet
  • Type of voltage DC
  • Locked-rotor protection Electronic protection against blocked rotor.
  • Weight 0,65 Kg
