Manufacturer: Ebmpapst

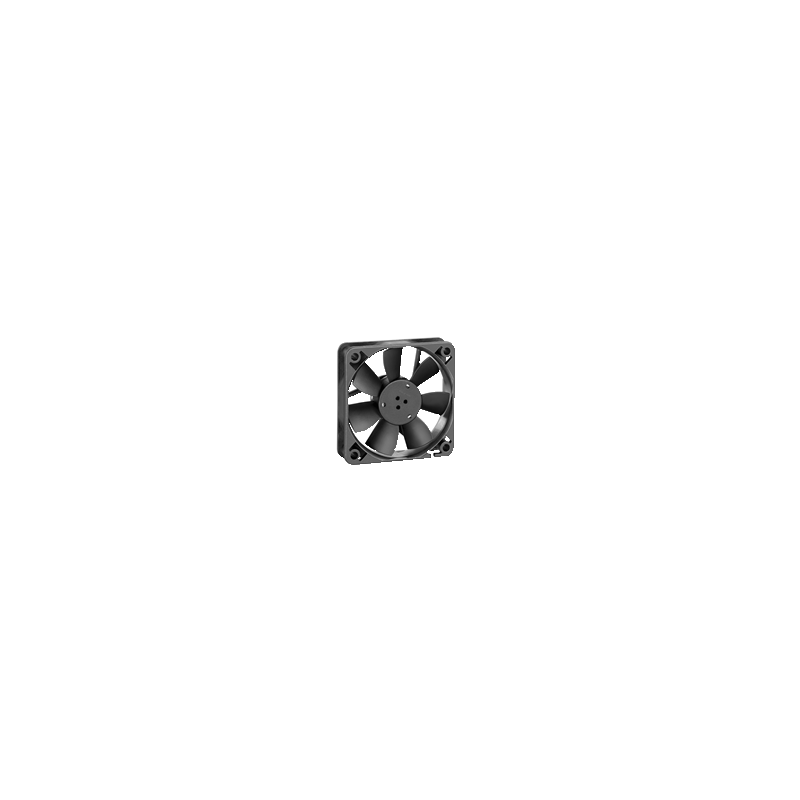

614 F DC Axial Fan 24V 1.1W

  • 614F
  • Air flow direction Exhaust through struts
  • Dimensions 60 x 60 x 15 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 1,1
  • Nominal voltage 24
  • Speed 3900
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 29
  • Fan type DC axial compact
  • Voltage range 21,6 ... 26,4
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Locked-rotor protection Impedance protection
  • Weight 0,03 kg
