Manufacturer: Ebmpapst

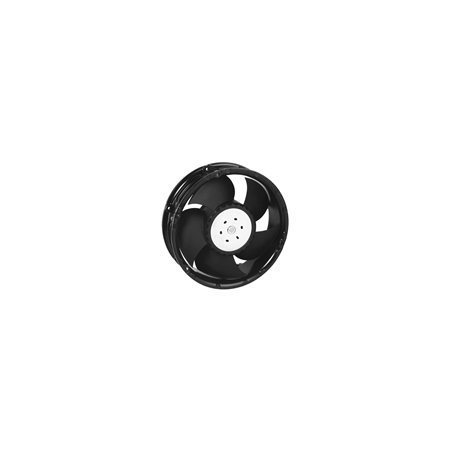

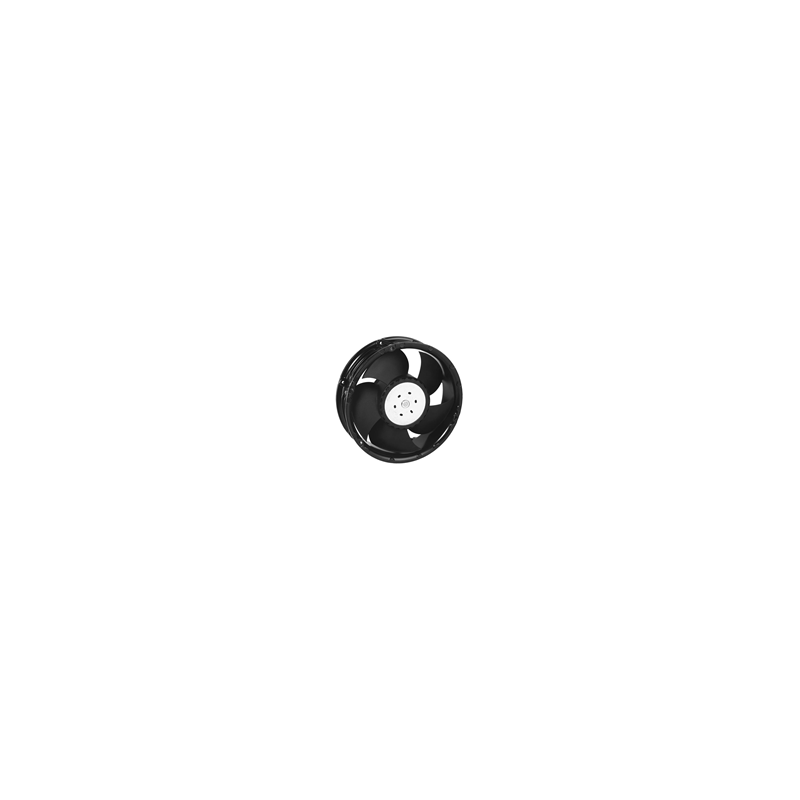

6314 / 2 TDHP DC Axial Fan 24V 410W

  • 63142TDHP
  • Air flow direction Exhaust through struts
  • Dimensions Ø 172 x 51 mm
  • Housing material Die-cast aluminum
  • Input power 410
  • Nominal voltage 24
  • Speed 5500
  • Min. ambient temperature -20
  • Max. ambient temperature 75
  • Air flow 600
  • Fan type DC axial compact
  • Voltage range 16 ... 36
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Weight 0,91 kg
