Manufacturer: Ebmpapst

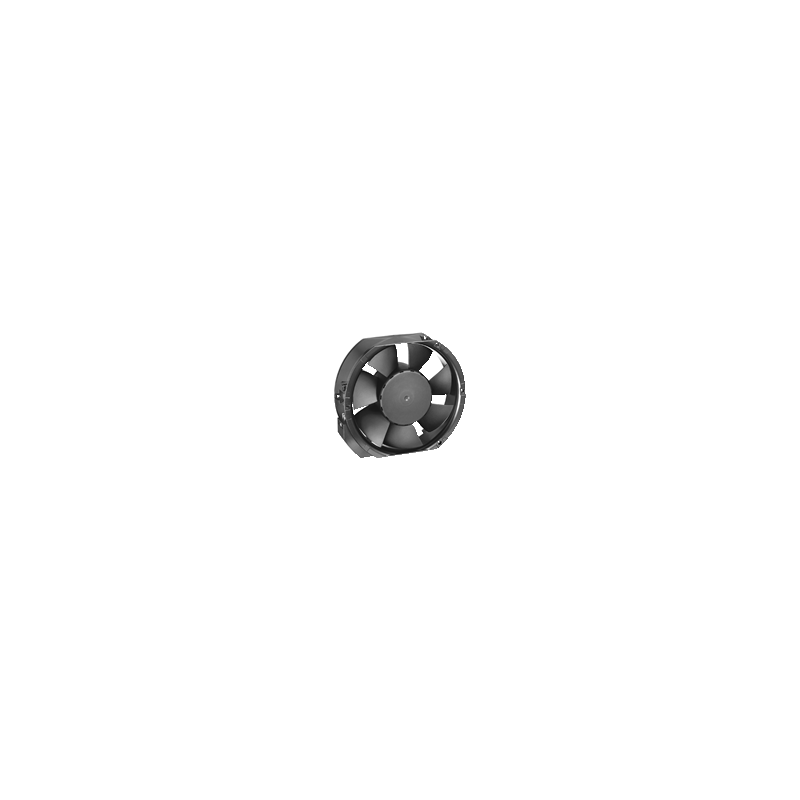

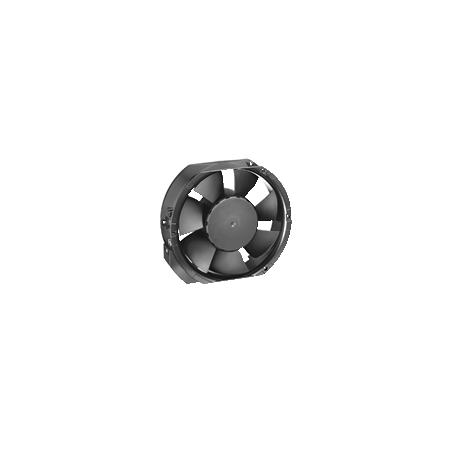

6448 TDHH DC Axial Fan 48V 163W

  • 6448TDHH
  • Air flow direction Exhaust through struts
  • Dimensions 172 x 150 x 51 mm
  • Housing material Aluminum. Housing with grounding eyelet for M4 x 8 (Torx) screw.
  • Input power 163
  • Nominal voltage 48
  • Speed 7500
  • Min. ambient temperature -20
  • Max. ambient temperature 60
  • Air flow 900
  • Fan type DC axial compact
  • Voltage range 36 ... 72
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Weight 0,76 kg
