Manufacturer: Ebmpapst

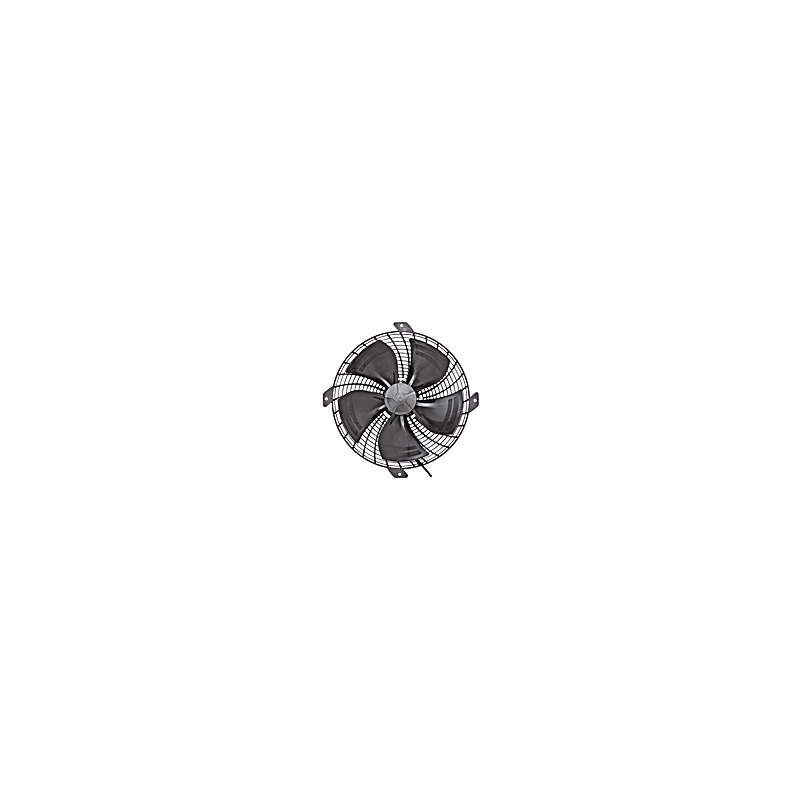

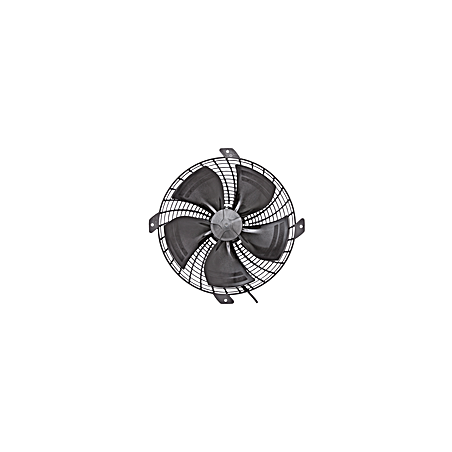

S1G305-DA01-02 EC axial fan 230V W

  • S1G305DA0102
  • Air flow direction A
  • Protection rating IP54
  • Frequency 50/60
  • Phase 1~
  • Nominal voltage 230
  • Speed 1200
  • Max. ambient temperature 40
  • Certificate CCC / EAC
  • Size 305 mm
  • Fan type EC axial with protective grille
  • Voltage range 200 ... 240
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Locked rotor protection
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1+
  • Motor bearing Ball bearing with low-temperature grease
  • Rotor surface PP plastic casting
  • Max. permitted ambient temp. (transport/storage) 70
  • Min. ambient temp. (transport/storage) -40
  • Weight 1,5 kg
  • Compliance with standards CE
