Manufacturer: Ebmpapst

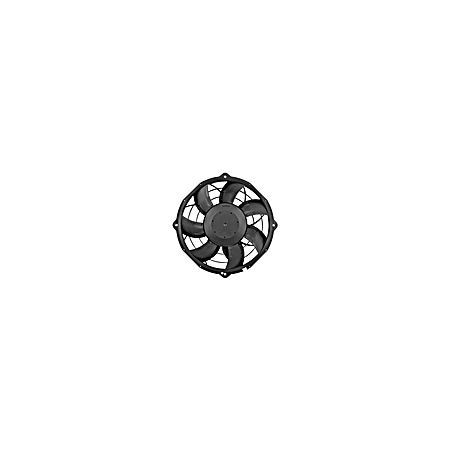

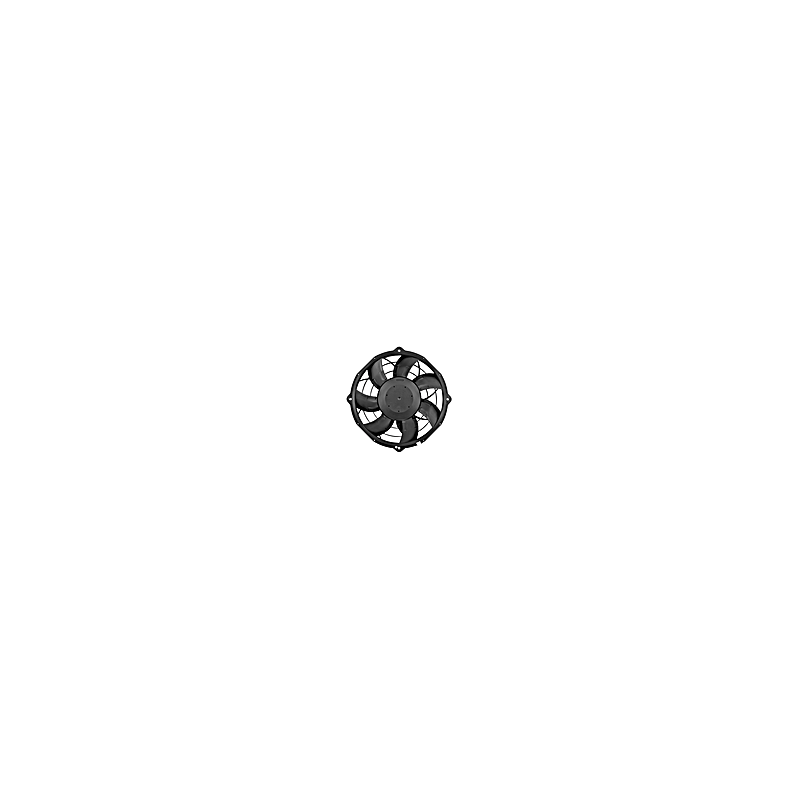

W3G350-SN01-30 EC axial fan 230V 165W

  • W3G350SN0130
  • Air flow direction V
  • Protection rating IP54
  • Frequency 50/60
  • Input power 165
  • Phase 1~
  • Nominal voltage 230
  • Speed 1475
  • Current draw 1,35
  • Min. ambient temperature -40
  • Max. ambient temperature 40
  • Certificate CCC
  • Size 350 mm
  • Fan type EC axial with wall ring
  • Voltage range 200 ... 240
  • Rotor material Pressed semi-finished product made of steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing with low-temperature grease
  • Maximum back pressure 85
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 70
  • Min. ambient temp. (transport/storage) -40
  • Fan housing material PP plastic
  • Weight 5,2 kg
  • Compliance with standards EN 60335-1 / UKCA / CE
