Manufacturer: Ebmpapst

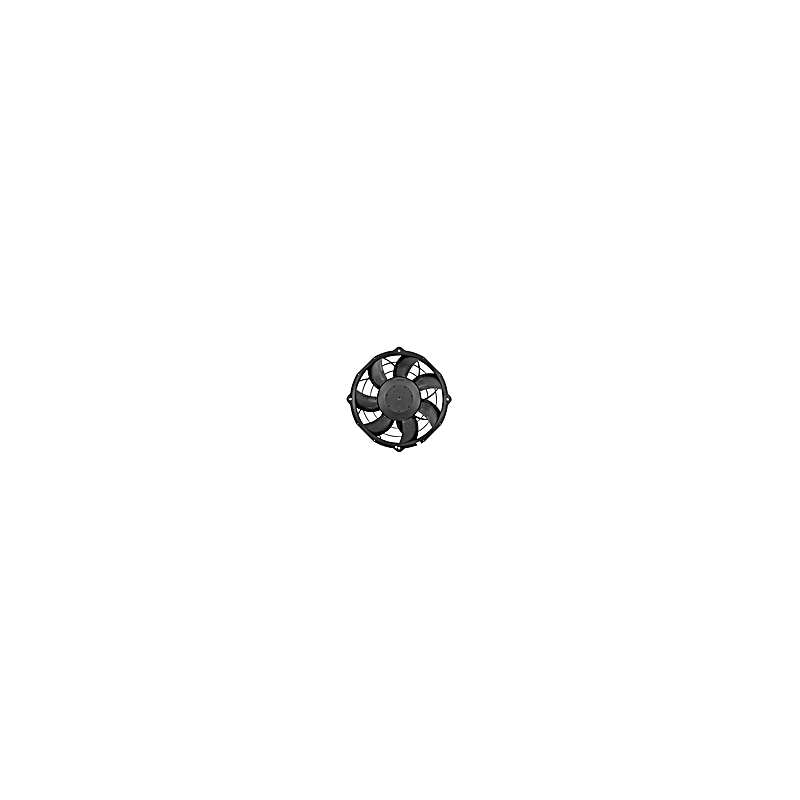

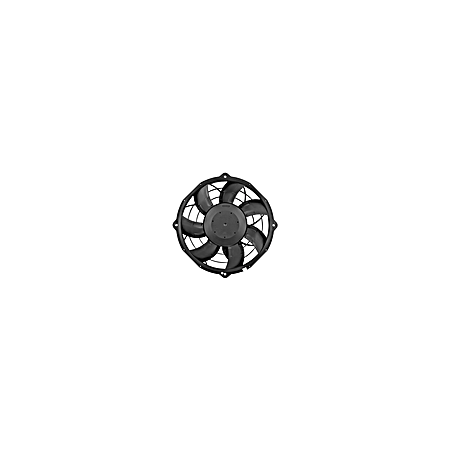

W3G500-KM03-M1 EC axial fan 400V 630W

  • W3G500KM03M1
  • Air flow direction V
  • Protection rating IP55
  • Frequency 50/60
  • Input power 630
  • Phase 3~
  • Nominal voltage 400
  • Speed 1370
  • Current draw 1
  • Min. ambient temperature -25
  • Max. ambient temperature 40
  • Certificate CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1 / EAC
  • Size 500 mm
  • Fan type EC axial with wall ring
  • Voltage range 380 ... 480
  • Rotor material Pressed semi-finished product made of steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2
  • Motor bearing Ball bearing with low-temperature grease
  • Maximum back pressure 170
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 70
  • Min. ambient temp. (transport/storage) -40
  • Fan housing material PP plastic
  • Weight 11,1 kg
  • Compliance with standards EN 60335-1; EN 61800-5-1 / CE
