Manufacturer: Ebmpapst

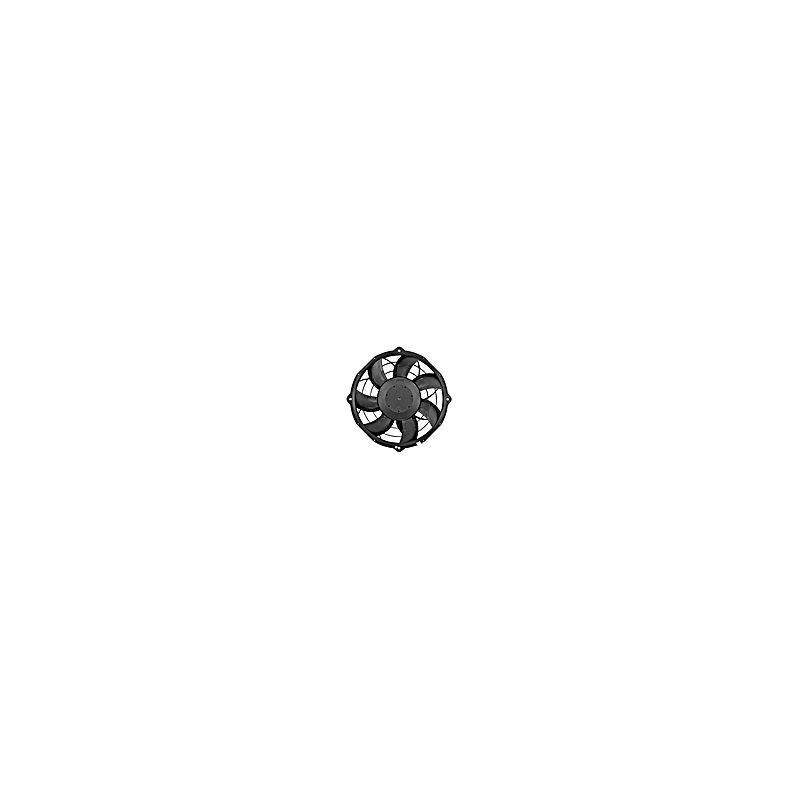

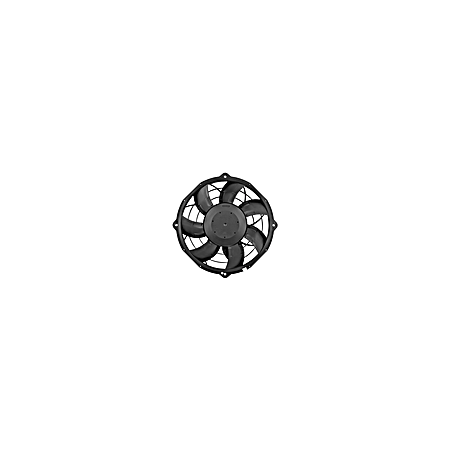

W3G710-NU31-03 EC axial fan 400V 3800W

  • W3G710NU3103
  • Air flow direction V
  • Protection rating IP55
  • Frequency 50/60
  • Input power 3800
  • Phase 3~
  • Nominal voltage 400
  • Speed 1680
  • Current draw 5,8
  • Max. ambient temperature 60
  • Certificate EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 710 mm
  • Fan type EC axial with wall ring
  • Voltage range 380 ... 480
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor size 150
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2
  • Motor bearing Ball bearing
  • Maximum back pressure 420
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted gray
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Fan housing material Steel sheet, galvanized and coated with black plastic (RAL 9005)
  • Weight 39,8 kg
  • Compliance with standards EN 61800-5-1 / CE / UKCA
