Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FANDIS

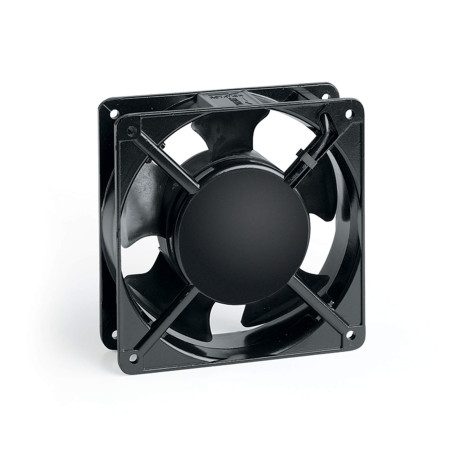

A12B23HTBKF0 AC axial fan 230V 114W

  • A12B23HTBKF0
  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 230
  • Housing material Odlew aluminium
  • Protection rating IP55
  • Frequency 50
  • Input power 15
  • Speed 2600
  • Current draw 0,12
  • Air flow 162
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 74
  • Noise Level 37
  • Fan type AC axial
  • Voltage range 200-240
  • Type of voltage AC
  • Motor protection Thermal protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷70 °C
  • Working temperature -40÷60 °C
