Manufacturer: FANDIS

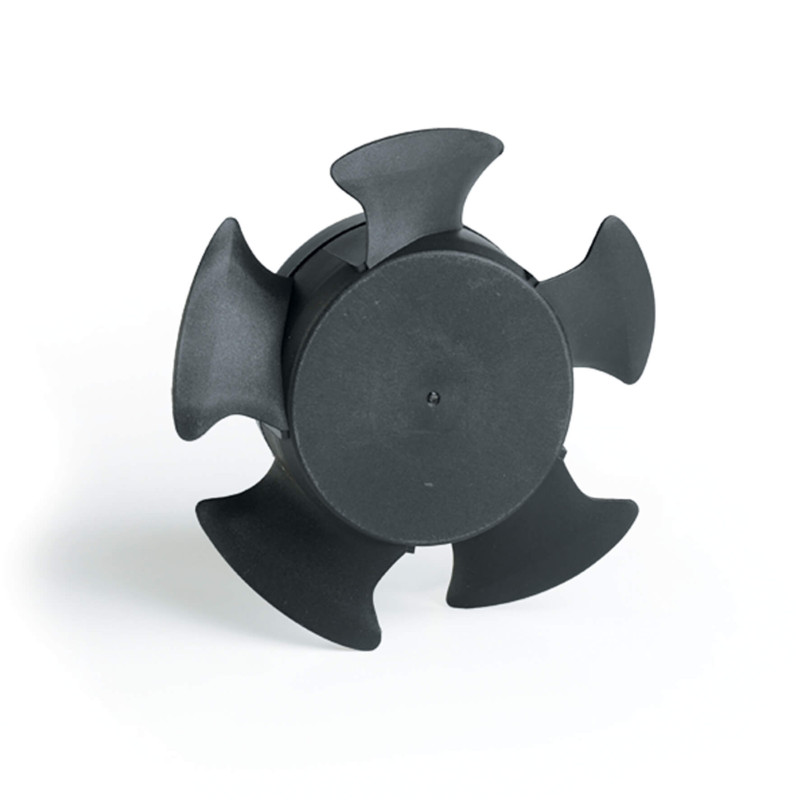

A12W23HWBWF0 AC axial fan 230V 19W

  • A12W23HWBWF0
  • Air flow direction Exhaust through brackets
  • Dimensions Ø113 x 38 mm
  • Rated voltage 230
  • Housing material Odlew aluminium
  • Protection rating IP55
  • Frequency 50
  • Input power 20
  • Speed 2550
  • Current draw 0,125
  • Air flow 151
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 65
  • Noise Level 46
  • Fan type AC axial
  • Voltage range 216-244
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Wires
  • Storage temperature -40÷70 °C
  • Working temperature -10÷70 °C
