Manufacturer: FANDIS

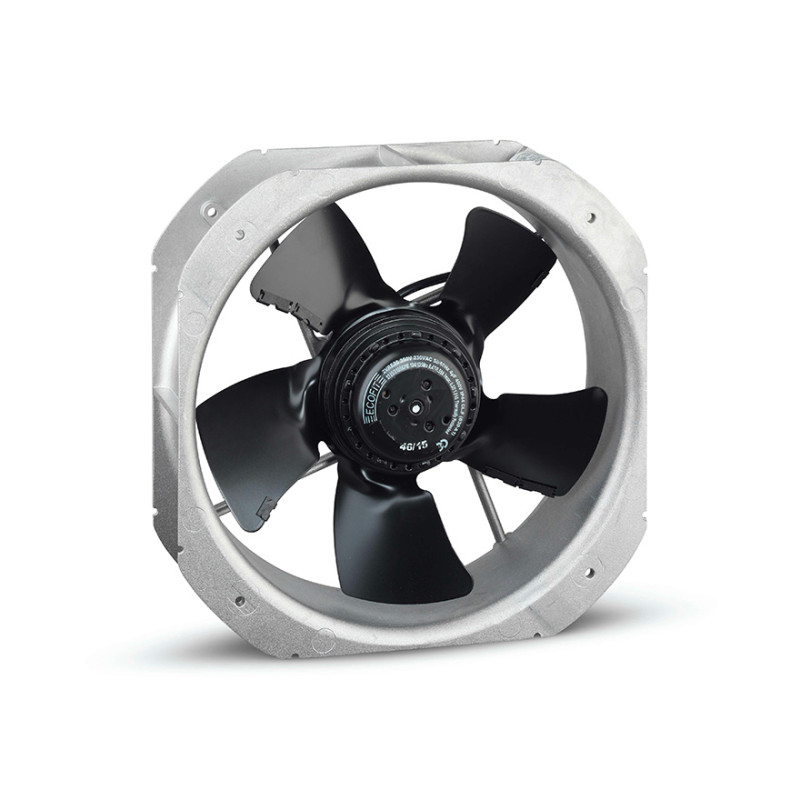

C25S23HKBE00 AC axial fan 230V 135W

  • C25S23HKBE00
  • Air flow direction Exhaust through brackets
  • Dimensions 280 x 280 x 80 mm
  • Rated voltage 230
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 104
  • Speed 2725
  • Current draw 0,47
  • Air flow 1660
  • Capacitor 4/4 µF
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 250
  • Noise Level 72
  • Fan type AC axial
  • Voltage range 207-253
  • Type of voltage AC
  • Motor protection Thermal protection
  • Insulation class F
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Screwless terminal block
  • Storage temperature -40÷70 °C
  • Working temperature -25÷70 °C
