Manufacturer: FANDIS

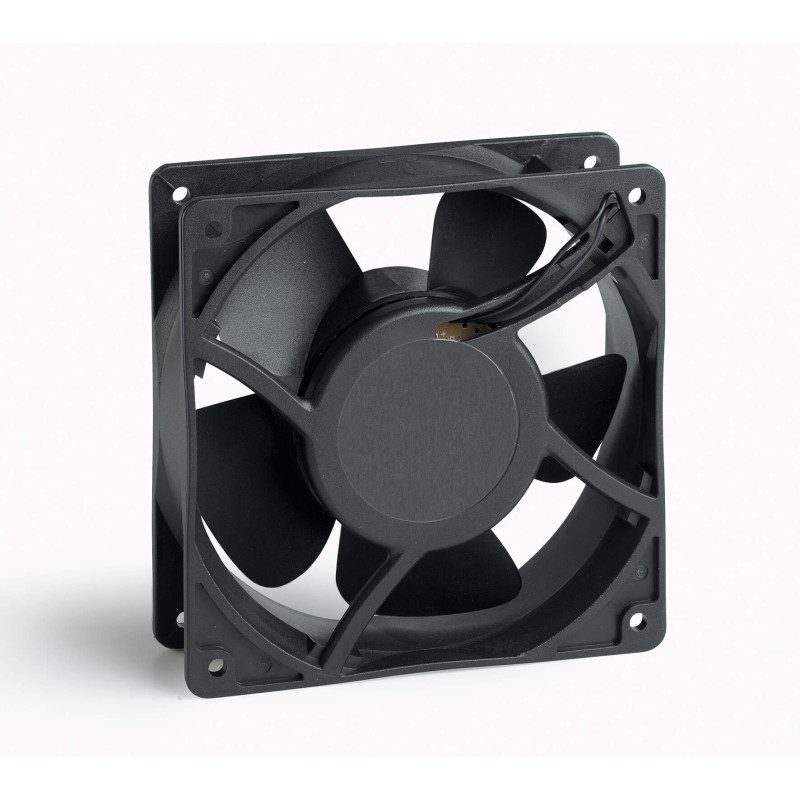

E12B23HWBL00 EC axial fan 230V 6W

  • E12B23HWBL00
  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 230
  • Housing material Plastik UL94-V0
  • Protection rating IP20
  • Frequency 50
  • Input power 6
  • Speed 3000
  • Current draw 0,05
  • Air flow 198
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 79
  • Noise Level 45
  • Fan type EC axial
  • Voltage range 140-264
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class B
  • Motor bearing Ball bearing
  • Protection class II
  • Electrical hookup Wires
  • Storage temperature -40÷75 °C
  • Working temperature -30÷70 °C
