Manufacturer: FANDIS

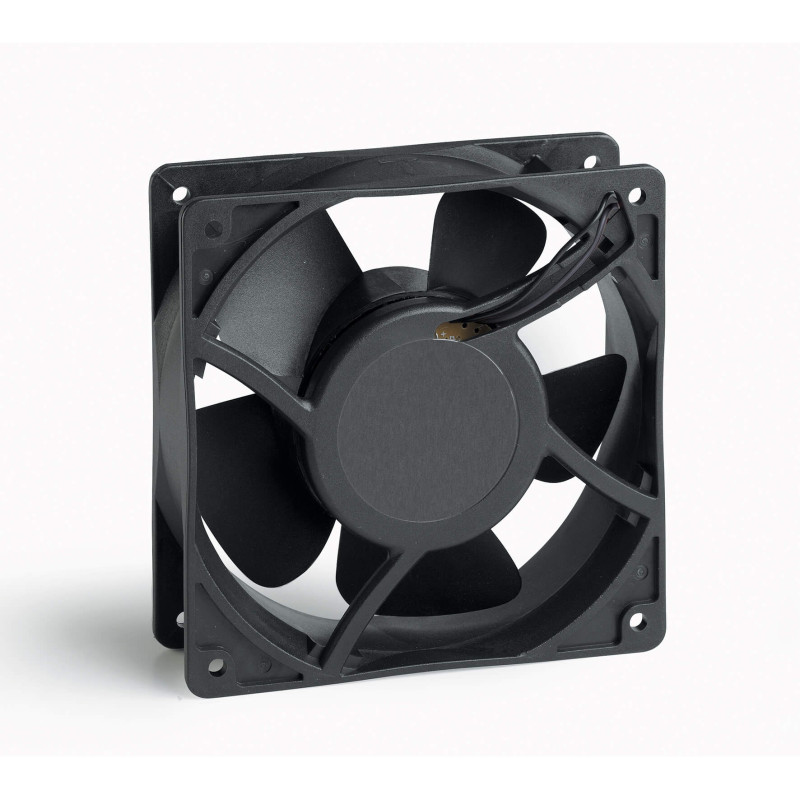

E12B23LWBL00 EC axial fan 230V 1.7W

  • E12B23LWBL00
  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 230
  • Housing material Plastik UL94-V0
  • Protection rating IP20
  • Frequency 50
  • Input power 1,7
  • Speed 1600
  • Current draw 0,03
  • Air flow 104
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 20
  • Noise Level 27.5
  • Fan type EC axial
  • Voltage range 140-264
  • Type of voltage AC
  • Motor protection Impedance protection
  • Motor bearing Ball bearing
  • Protection class II
  • Electrical hookup Wires
  • Storage temperature -40÷75 °C
  • Working temperature -30÷70 °C
