Manufacturer: Proconect

CB Battery Connector

Battery connector Series CB

Characteristics

  • Voltage: 600V max.
  • Amperage: 50 A, 175 A, 350 A
  • Temperature range: -40° / + 120° C
  • Housing: polycarbonate or polyamide acids, bases and hydrocarbons proof
  • Contacts: electrolytic copper, galvanic silvering, anti-corrosion protection (to crimp or to solder)
  • Springs: stainless steel

  Grey Red Black Red Blue Yellow Green Orange Section:
mm2 AWG
CB 50 149010 149011 149050 149051 149090* 149091* 149090R* 149091R* - - - - 16
6		 6
10
CB 175 149110 149111 149112 149150 149151 149152 149190* 149191* 149192* 149190R* 149191R* 149192R* 149120 149121 149122 149140 149141 149142 - 149130
149131
149132		 1/0
2		 1/0
2
CB 350 149210 149250 - - 149220 149240 149260 - 70 2/0

Handle:

  Ref. Color
CB 50 165353 Red
CB 175 165370  Red
165380 Grey
CB 350 165371 Red
165381 Grey

Spare parts:

  CB 50 CB 175 CB 350
Housings:
Grey 166090 166100  166110
Red 166091  166104  166114
Red 166092R*  - -
Black 166092*  166106  -
Blue -  166101  166111
Yellow -  166103  166113
Green -  -  166115
Orange -  166102  -
* in polyamide
Other:
Set of 2 contacts 6 mm2 166121 -  -
Set of 2 contacts 16 mm2 166120 -  -
Set of 2 contacts 25 mm2 -  166132  -
Set of 2 contacts 35 mm2 - 166131 -
Set of 2 contacts 50 mm2 - 166130 -
Set of 2 contacts 70 mm2 - - 166140
Reducer 50 mm2 / 25 mm2 - 166133 -
Dust cap  165376 165375 -

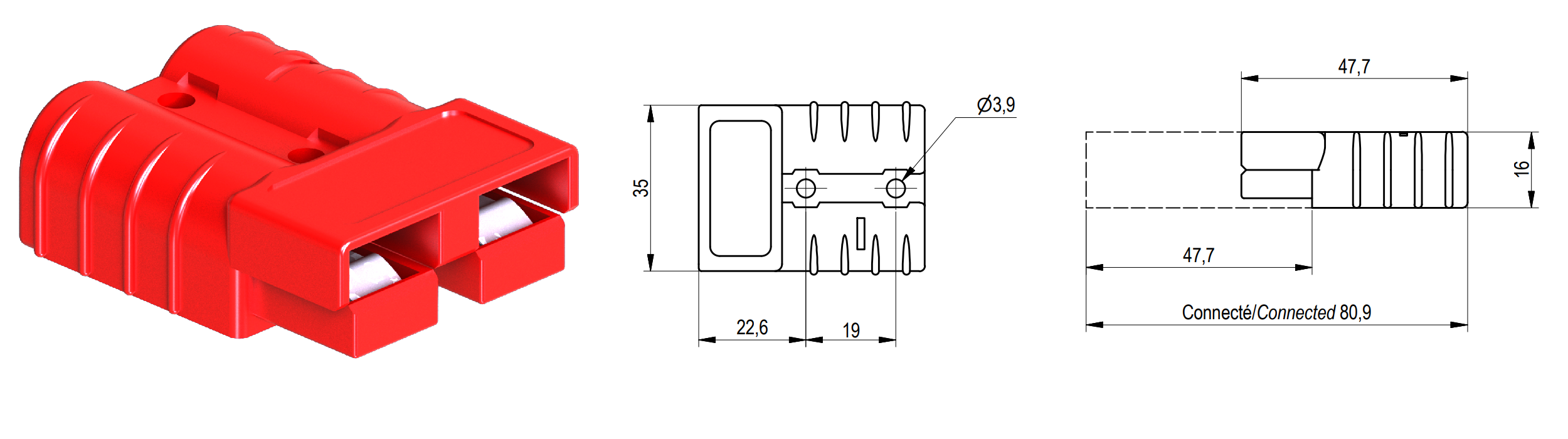

CB 50

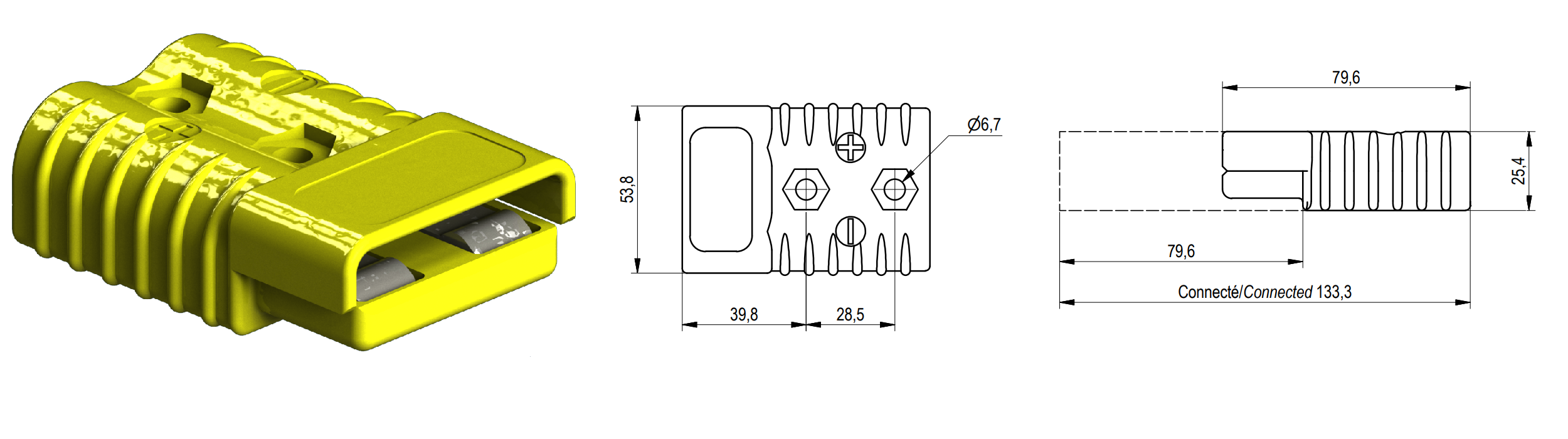

CB 175

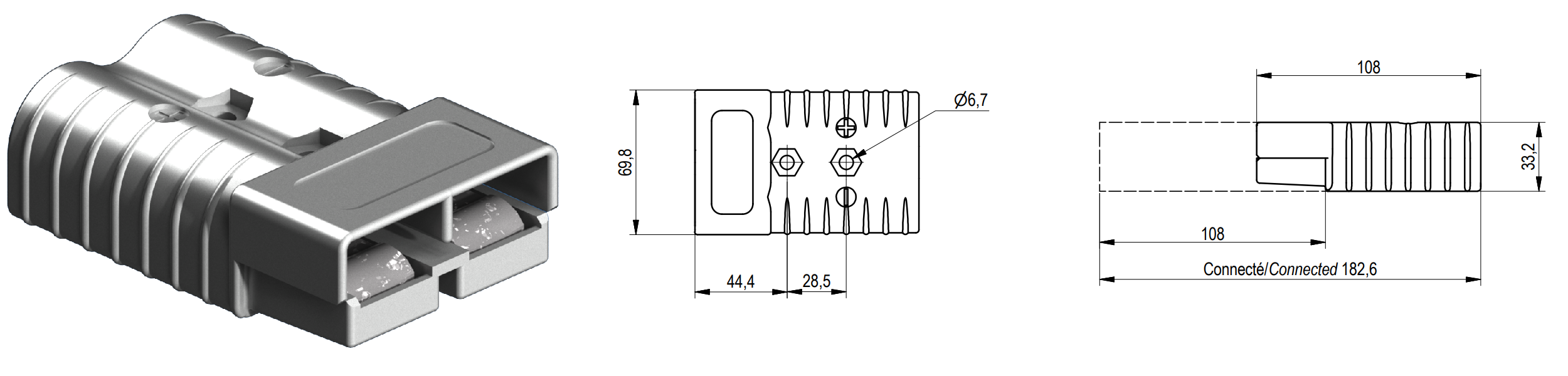

CB 350
