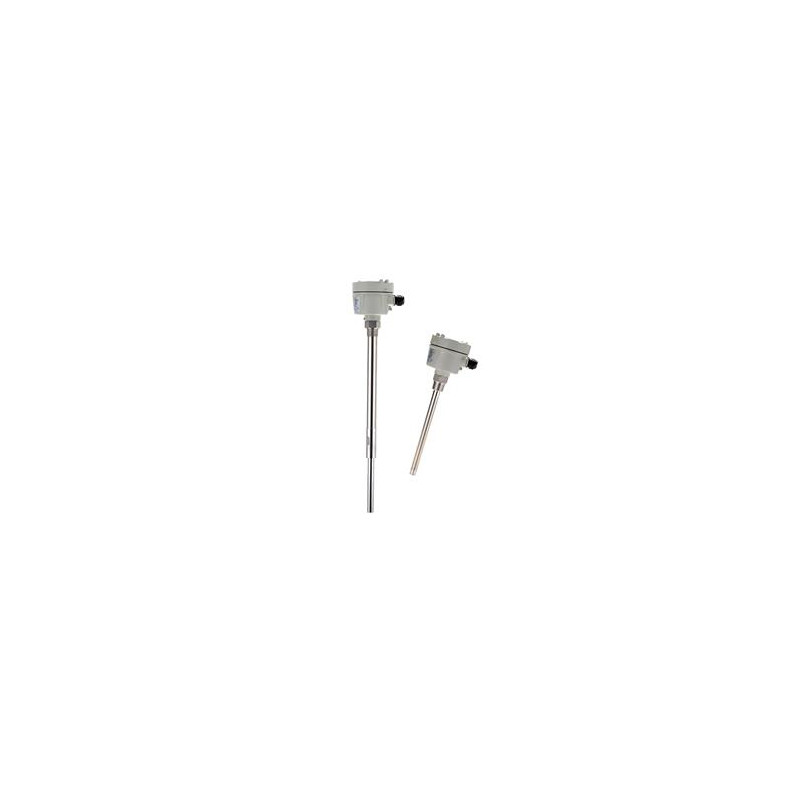

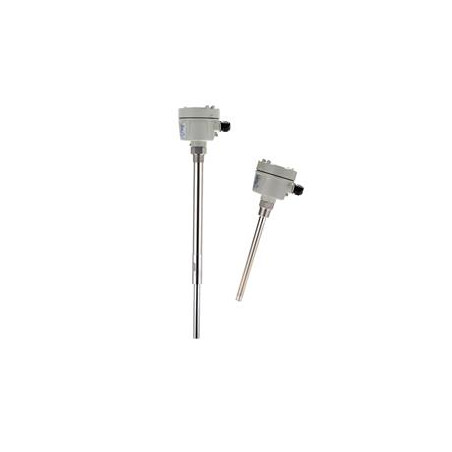

SCX1 - Level sensor with vibrating rod probe 136629A

General Description:

SCX1 series level sensors are reliable and versatile devices that utilize the principle of measuring the damping of resonant vibrations generated by a piezoelectric system. The device utilizes a precisely tuned mechanical resonator whose natural frequency changes upon contact with bulk or granular material. Detection is based on detecting a decrease in amplitude or a phase shift of the vibration signal, allowing for the identification of the medium's presence independent of conductivity, humidity, or dielectric constant.

Main Features:

• Resonant detection technology – precise detection of bulk materials regardless of their electrical properties
• High resistance to mechanical vibrations, shocks, and electrostatics
• No moving mechanical parts – low failure rate and maintenance-free
• Sensitivity adjusted to the density of the medium
• Built-in circuit – reliable operation even in the event of a power outage
• Power supply: 20–250 V AC/DC, 50–60 Hz
• SPDT relay output or optional SSR/MOSFET
• Euro and UL certified models available

Applications:

The SCX1 sensor is designed for detecting the level of bulk materials in silos, tanks, conveyors, and dust extraction cyclones, including:

• Powders: flour, milk powder, spices, sugar, cocoa, fly ash, powdered clay
• Granulates: sand, cement, plastic granulates, ground glass
• Light materials: chips, nuts, feed, chalk, wood chips, polystyrene, pellets
