Manufacturer: DetasUltra

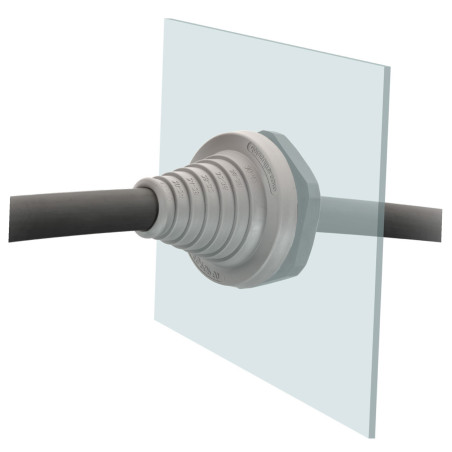

DES PDP 32G - Grommets

  • 1732050032
  • Product Type Sealing modules
  • Dimensions 55,2 x Ø 46
  • Hole 32,5
  • Thread M32
  • Number of wires 1 - 5 / 23 ∅

DES PDP series grommets are available in six different formats:

  • For cables with diameters from 2.5 to 64 mm
  • Internal reinforcing frame
  • Cost efficient solution
  • UL94-V0 for gray and black
  • ATEX version on request

*4X for indoor use only

  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
  • Properties:halogen-free, silicone-free
Model Code Opening Ø [mm] Dimensions H Dimensions Ø P [mm] Thread No. cables - Ø cables [mm]
DES PDP 25G 1732050025 25,5 46,5 39 M25 1 - 2,5 / 17
DES PDP 32G 1732050032 32,5 55,2 46 M32 1 - 5 / 23
DES PDP 40G 1732050040 40,5 62 54 M40 1 - 8 / 29
DES PDP 50G 1732050050 50,5 50 64 M50 1 - 17 / 42
DES PDP 63G 1732050063 63,5 62 77 M63 1 - 23 / 55
DES PDP 75G 1732050075 75,5 64 89 M75 1 - 38 / 64
DES PDP 25B 1732052025 25,5 46,5 39 M25 1 - 2,5 / 17
DES PDP 32B 1732052032 32,5 55,2 46 M32 1 - 5 / 23
DES PDP 40B 1732052040 40,5 62 54 M40 1 - 8 / 29
DES PDP 50B 1732052050 50,5 50 64 M50 1 - 17 / 42
DES PDP 63B 1732052063 63,5 62 77 M63 1 - 23 / 55
DES PDP 75B 1732052075 75,5 64 89 M75 1 - 38 / 64
DES PDP 25GA 1732350025 25,5 46,5 39 M25 1 - 2,5 / 17
DES PDP 32GA 1732350032 32,5 55,2 46 M32 1 - 5 / 23
DES PDP 40GA 1732350040 40,5 62 54 M40 1 - 8 / 29
DES PDP 50GA 1732350050 50,5 50 64 M50 1 - 17 / 42
DES PDP 63GA 1732350063 63,5 62 77 M63 1 - 23 / 55
DES PDP 75GA 1732350075 75,5 64 89 M75 1 - 38 / 64
DES PDP 25BA 1732352025 25,5 46,5 39 M25 1 - 2,5 / 17
DES PDP 32BA 1732352032 32,5 55,2 46 M32 1 - 5 / 23
DES PDP 40BA 1732352040 40,5 62 54 M40 1 - 8 / 29
DES PDP 50BA 1732352050 50,5 50 64 M50 1 - 17 / 42
DES PDP 63BA 1732352063 63,5 62 77 M63 1 - 23 / 55
DES PDP 75BA 1732352075 75,5 64 89 M75 1 - 38 / 64
