Manufacturer: DetasUltra

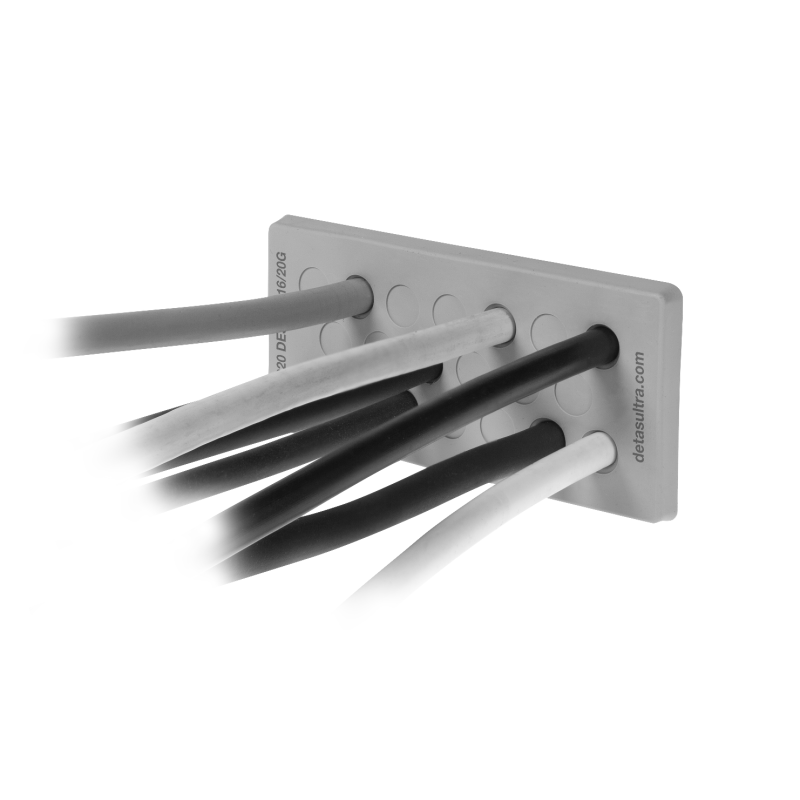

DES PM 16/26G - Cable entry plates

  • 1732052326
  • Dimensions 98 x 46
  • Product Type Przepusty kablowe
  • Number of wires 19 - max. 6,5 ; 7 - max. 8,3 ∅

DES PM 16 cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Saving space and installation time
  • High protection (IP65)
  • Material: TPE
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
  • Wall thickness: 1.5 to 2.5 mm
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PM 16/20G 1732052320 86 x 36 98 x 46
20 - max. 8,3
DES PM 16/23G 1732052323 86 x 36 98 x 46
18 - max. 6,5
5 - max. 12,1
DES PM 16/26G 1732052326 86 x 36 98 x 46
19 - max. 6,5
7 - max. 8,3
