Manufacturer: DetasUltra

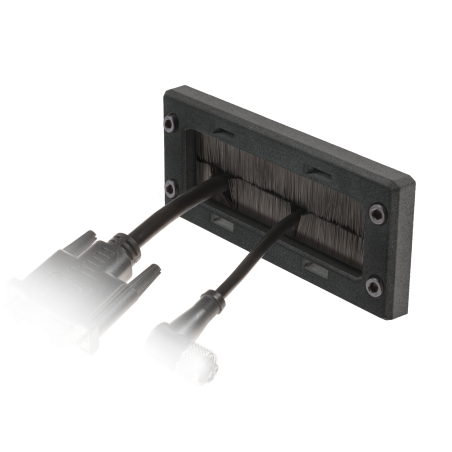

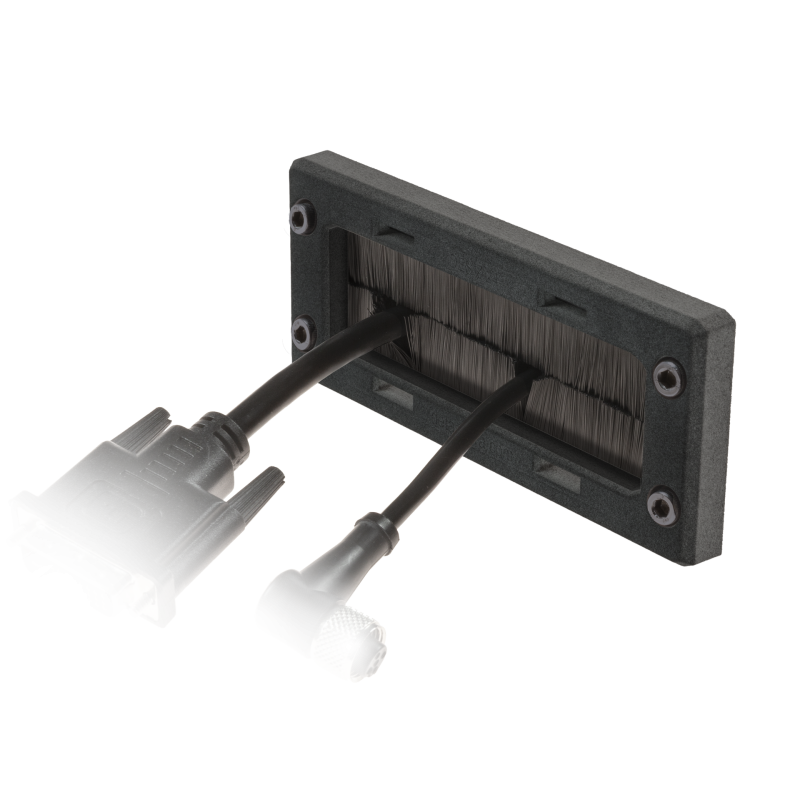

DES Z 24 - Cable entry with brushes

  • 1731060024
  • Hole 112 x 39
  • Product Type Szczotkowe przepusty kablowe

The DES Z series allows the routingof cables with or without connectors through cabinets and switchboards without the need for water protection or mechanical sealing of the cable. Cables will thus appear tidy.

  • Single brush frame for cables with or without connectors.
  • Cost efficient solution
  • Three sizes are available (24, 16 and 10)
  • Material: PC
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -25°C... +80°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES Z 10 1731060010 63 x 39
DES Z 16 1731060016 86 x 39
DES Z 24 1731060024 112 x 39
DES HZ24 1731060124 112 x 39
