Manufacturer: DetasUltra

OSF 63B - Splittable cable glands

  • 1731052460
  • Product Type Split cable glands
  • Hole 63,5

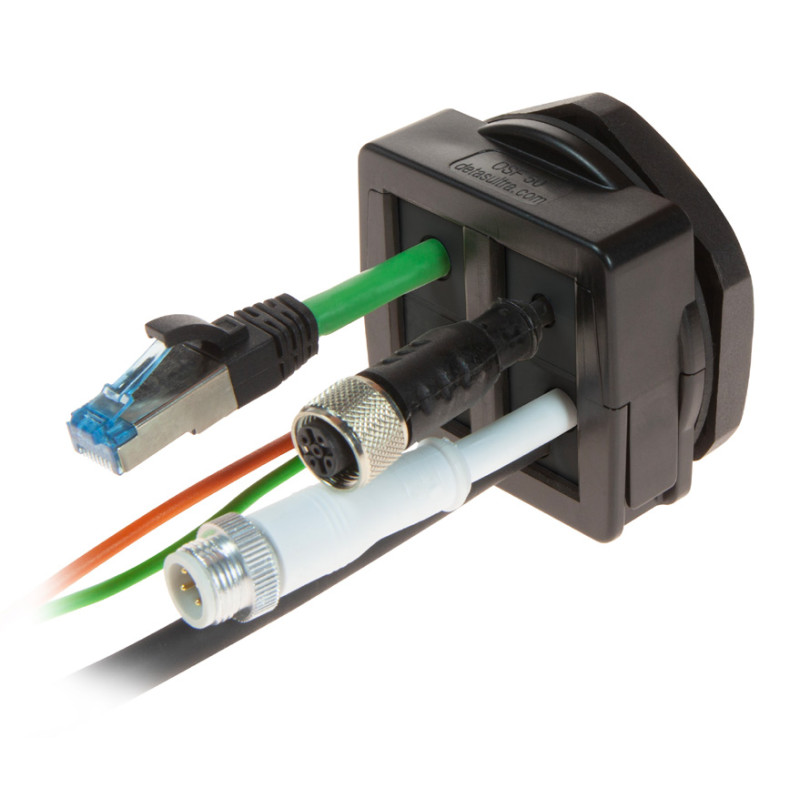

OSF50 and OSF63 divisible cable glands have metric threads and are particularly suitable for use with cables with connectors.

  • Can be used with small and large grommets
  • M50 metric thread
  • Without screws, snap closure
  • IP54 protection
  • Loc nut and gasket included
  • Available colors: grey and black
  • Material: PC
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C… +130°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Opening Ø [mm]
OSF 50G 1731052350 50,5
OSF 63G 1731052363 63,5
OSF 50B 1731052450 50,5
OSF 63B 1731052460 63,5
