Manufacturer: DetasUltra

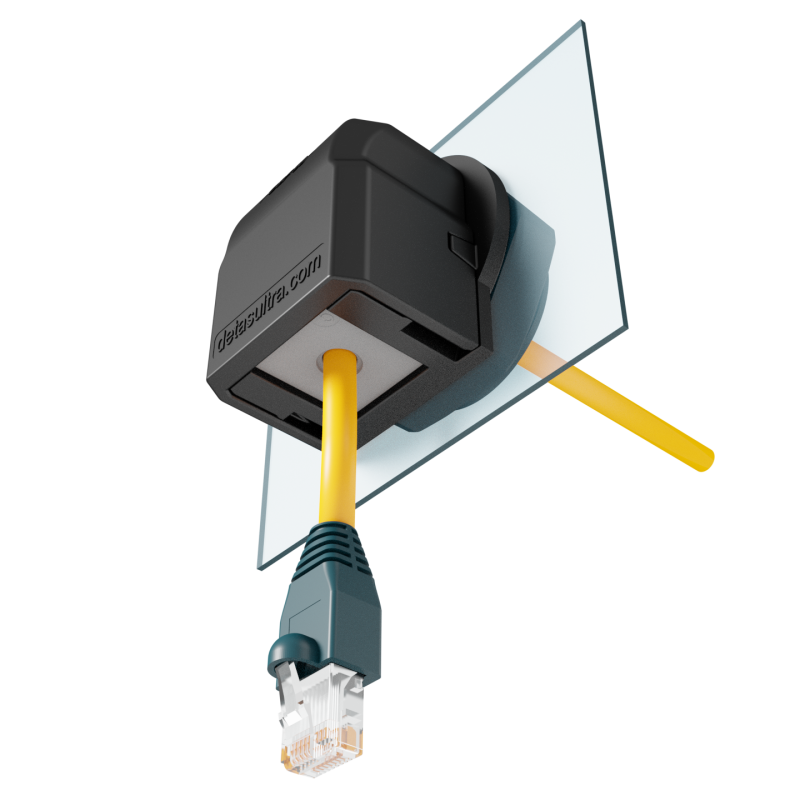

OSF90 16G - Splittable cable glands

  • 1731052916
  • Product Type Split cable glands
  • Hole 16,5

OSF 90 is a divisible cable gland with metric threads with 90° cable entry.

  • Metric sizes
  • Snap-in assembly
  • IP54
  • Locknut included
  • Available colors: grey and black
  • Material: PC
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C… +130°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Opening Ø [mm]
OSF90 16G 1731052916 16,5
OSF90 16B 1731052917 16,5
OSF90 20G 1731052920 20,5
OSF90 20B 1731052921 20,5
OSF90 25G 1731052925 25,5
OSF90 25B 1731052926 25,5
OSF90 32G 1731052932 32,5
OSF90 32B 1731052933 32,5
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
