Manufacturer: DetasUltra

SPC 2x3G - Grommets

  • 1731052523
  • Product Type Moduły uszczelniające
  • 2 - 3

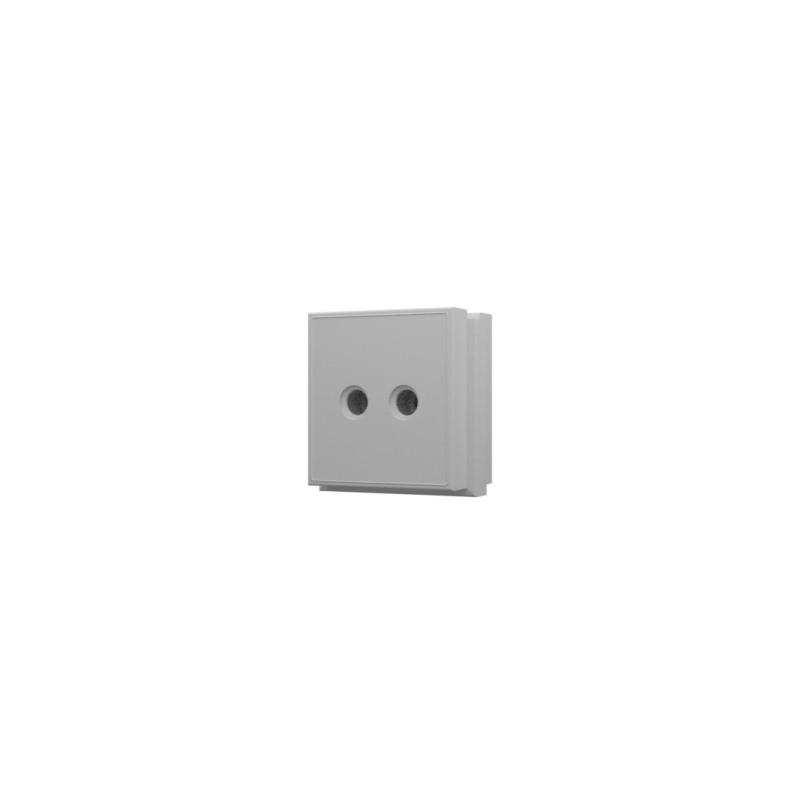

SPC cable grommets allow two cables with diameter from 2 to 7 mm to be routed inside OSF or DES XX CLICK splittable frames.

  • Cable grommets for two cables with connectors with diameters from 2 to 7 mm
  • Long lasting product and high resistance to industrial oils.
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code No. cables - Ø cables [mm]
SPC 2x2G 1731052522 2 - 2
SPC 2x3G 1731052523 2 - 3
SPC 2x4G 1731052524 2 - 4
SPC 2x5G 1731052525 2 - 5
SPC 2x6G 1731052526 2 - 6
SPC 2x7G 1731052527 2 - 7
SPC 2x2B 1731052622 2 - 2
SPC 2x3B 1731052623 2 - 3
SPC 2x4B 1731052624 2 - 4
SPC 2x5B 1731052625 2 - 5
SPC 2x6B 1731052626 2 - 6
SPC 2x7B 1731052627 2 - 7
