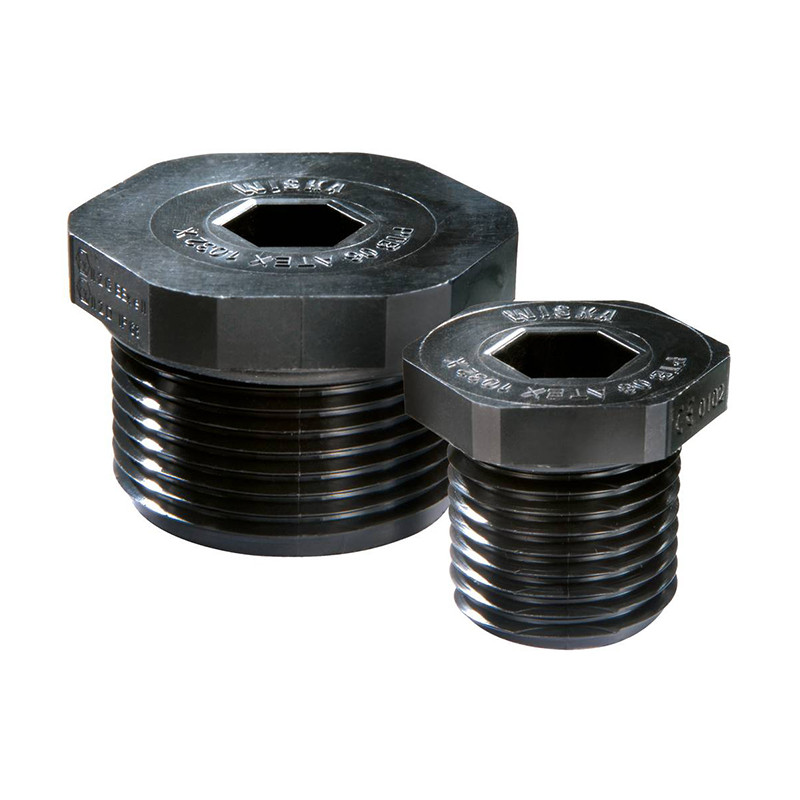

EVSG cable end caps can be used in junction boxes (with increased safety) and for control panels. Suitable for both gas and dust explosion hazard zones 1 and 21.
| Material: | Polyamide |
| Seal: | CR |
| Color: | Black RAL9005 |
| Protection level: | IP 68 |
| Operating temperature range: | -40OC - +75OC |
| Protection type: | II 2GD EEx e II IP68 |
| PTB 06 ATEX 1032 X |

| Thread (D) |
Number | Length (L) |
Wrench Size (SW1) |
Size (D) |
Wrench Size (SW2) |
Quantity per Package | Quantity per Package |
|---|---|---|---|---|---|---|---|
M12x1.5 |
100433 |
19 | 16 | 18 | 6 | 100 | 50 |
M16x1.5 |
100015 |
19 | 20 | 22 | 8 | 100 | 50 |
M20x1.5 |
100016 |
19 | 24 | 26 | 8 | 100 | 50 |
M25x1.5 |
100017 |
20 | 29 | 31 | 8 | 100 | 25 |
M32x1.5 |
100018 |
20 | 36 | 39 | 8 | 50 | 10 |
M40x1.5 |
100019 |
20 | 46 | 50 | 8 | 30 | 4 |
M50x1.5 |
100020 |
20 | 55 | 60 | 8 | 30 | 1 |
M63x1.5 |
100021 |
20 | 68 | 73 | 8 | 30 |
