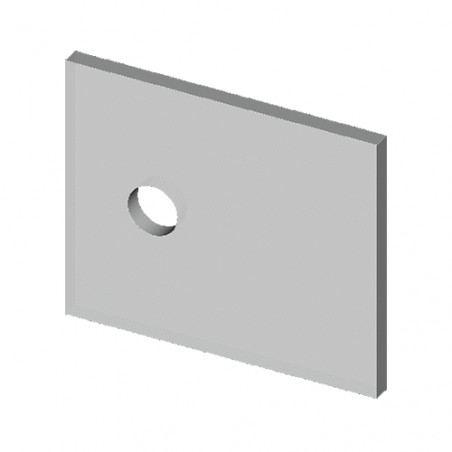

Ceramic washers
  • Ceramic washers

Photos are for informational purposes only. View product specification

Manufacturer: ALUTRONIC

Ceramic washers

Ceramic washers
AO 479
Technical data
For casing
TO 220
Thickness
1,5 mm
Dielectric withstand
15 KV/mm
Resistance
10-4Ω x cm
Rth (T03):
0,5 K /W
material
Al2O3

AO 475
Technical data
For casing
TO 220
Thickness
1,6 mm
Dielectric withstand
16 KV/mm
Resistance
10-4Ω x cm
Rth (T03):
0,5 K /W
material
Al2O3

AO 471
Technical data
For casing
TOP 3
Thickness
1,5 mm
Dielectric withstand
15 KV/mm
Resistance
10-4Ω x cm
Rth (T03):
0,5 K /W
material
Al2O3


AO 472
Technical data
For casing
TOP 3
Thickness
1,6 mm
Dielectric withstand
16 KV/mm
Resistance
10-4Ω x cm
Rth (T03):
0,5 K /W
material
Al2O3

AO 480/3
Technical data
For casing
TOP 3
Thickness
1,5 mm
Dielectric withstand
15 KV/mm
Resistance
10-4Ω x cm
Rth (T03):
0,5 K /W
material
Al2O3
