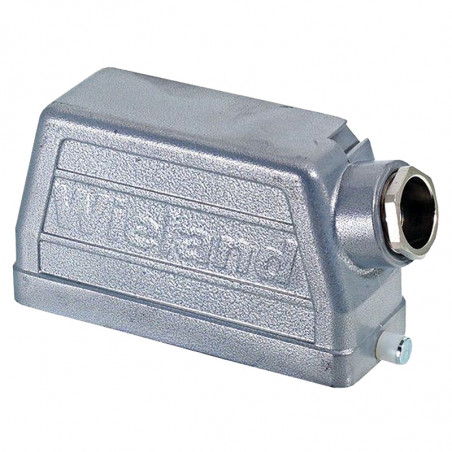

Joints with one clamp from 6 to 48 poles
  • Joints with one clamp from 6 to 48 poles

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Wieland Polska: złącza, przekaźniki bezpieczeństwa i podzespoły

Connectors with one buckle from 6 to 48 fields

Joints with one clamp from 6 to 48 poles



400 V ~ Gr. C VDE 0627/06.86, 16 A
  6-pole + grounding
    Wire Section Certificates Insulated length Contacts Package. Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.0640.0
        5
    7 mm gilding 10 70.301.0640.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.0640.0
        5
    7 mm gilding   70.311.0640.0
Contacts clamps
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.0658.0
        5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.0658.0
        5
Contacts spring
 Socket 0,14-2,5 mm2 7 mm Srebrzone 10 70.500.0653.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Srebrzone 10 70.510.0653.0
500V/6kV/3VDE0110       5

Contacts Screw
Connect adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.0653.3

Socket, grounding
from left

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.0653.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.0653.3
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.0653.3
Contacts Screw
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.0653.4
Socket, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.0653.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.0653.4
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.0653.4
Contacts spring
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.0653.0
Socket, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.0653.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.0653.0
pin, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.0653.0

                10-poles + grounding
    Wire Section Certificates Insulated length Contacts Package. Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.1040.0
        5
    7 mm gilding 10 70.301.1040.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.1040.0
        5
    7 mm gilding   70.311.1040.0
Contacts clamps
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.1058.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.1058.0
      5
Contacts spring
 Socket 0,14-2,5 mm2 7 mm Srebrzone 10 70.500.1053.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Srebrzone 10 70.510.1053.0
500V/6kV/3VDE0110       5

Contacts Screw
Connect adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1053.3

Socket, grounding
from left

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1053.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.1053.3
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1053.3
Contacts Screw
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1053.4
Socket, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1053.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.1053.4
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1053.4
Contacts spring
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.1053.0
Socket, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.1053.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.1053.0
pin, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.1053.0

                16-poles + grounding
    Wire Section Certificates Insulated length Contacts Package. Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.1640.0
        5
    7 mm gilding 10 70.301.1640.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.1640.0
        5
    7 mm gilding   70.311.1640.0
Contacts clamps
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.1658.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.1658.0
      5
Contacts spring
 Socket 0,14-2,5 mm2 7 mm Srebrzone 10 70.500.1653.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Srebrzone 10 70.510.1653.0
500V/6kV/3VDE0110       5

Contacts Screw
Connect adapter, short execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1653.3

Socket, grounding
from left

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1653.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.1653.3
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1653.3
Contacts Screw
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1653.4
Socket, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1653.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.1653.4
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1653.4
Contacts spring
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.1653.0
Socket, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.1653.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.1653.0
pin, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.1653.0

                24-poles + grounding
    Wire Section Certificates Insulated length Contacts Package. Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.2440.0
        5
    7 mm gilding 10 70.301.2440.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.2440.0
        5
    7 mm gilding   70.311.2440.0
Contacts clamps
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.2458.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.2458.0
      5
Contacts spring
 Socket 0,14-2,5 mm2 7 mm Srebrzone 10 70.500.2453.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Srebrzone 10 70.510.2453.0
500V/6kV/3VDE0110       5

Contacts Screw
Connect adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.2453.3

Socket, grounding
from left

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.2453.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.2453.3
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.2453.3
Contacts Screw
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.2453.4
Socket, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.2453.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.2453.4
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.2453.4
Contacts spring
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.2453.0
Socket, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.2453.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.2453.0
pin, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.2453.0

                32-poles + grounding
    Wire Section Certificates Insulated length Contacts Package. Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10
        5 70.300.3253.0
    7 mm gilding 10
  pin 0,5 - 2,5 mm2 7 mm Nickel 10
        5 70.310.3253.0
    7 mm gilding
Contacts clamps
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5 70.700.3253.0
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5
Contacts spring
 Socket 0,14-2,5 mm2 7 mm Srebrzone 10
500V/6kV/3VDE0110       5 70.500.3253.0
  pin 0,14-2,5 mm2 7 mm Srebrzone 10
500V/6kV/3VDE0110       5 70.510.3253.0

Contacts Screw
Connect adapter, short execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10

Socket, grounding
from left

 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts Screw
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
Socket, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from left		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts spring
Connect adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
Socket, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from left		 0,5 - 2,5 mm2 9 mm Nickel 10

<t
                48-poles + grounding
    Wire Section Certificates Insulated length Contacts Package. Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.4840.0
        5
    7 mm gilding 10
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.4840.0
        5
    7 mm gilding
Contacts clamps
 Socket without pins 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.4858.0
