Manufacturer: M-SYSTEM

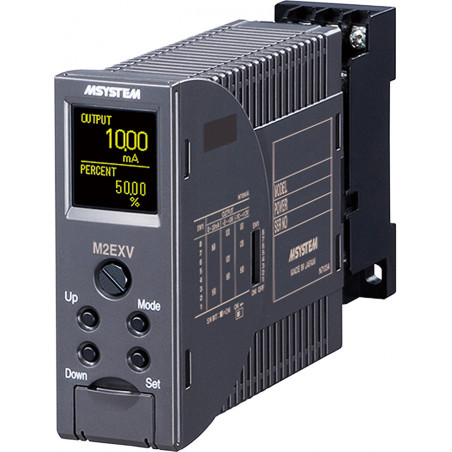

M2EXV - signal converter with DC input MV, voltage and current - customizable

  • M2EXV

M2EXV is a converter with DC mV input and output, current and voltage. It has an OEL display. Ranges of inputs and outputs calibrated by means of a PC or by means of buttons on the front of the housing.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Programmable via PC and buttons on the front of the housing
  • OEL display on the front of the case
  • Power 24V DC, 100-240V AC
  • LED power indicator
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection Configurable by PC and buttons on the front of the case
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 29.5x83x124mm
