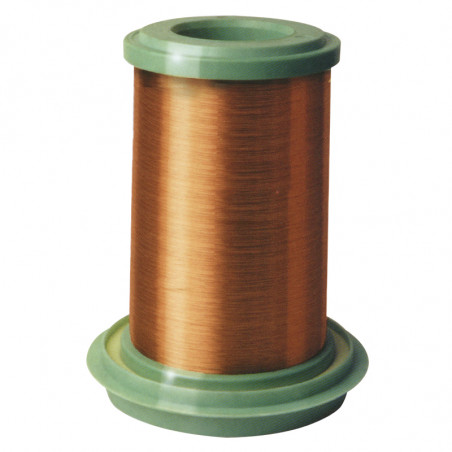

Photos are for informational purposes only. View product specification

Copper and aluminum physical properties

Copper and aluminium physical properties

Technical data


Coppe

1. Atomic weight 63,57
2. Atomic number 29
3. Weight @ 20°C 8,89 g/cm3
4. Melting temperature 1083°C
5. Boiling temperature 2310°C
6. Specific heat 18°C - 100°C 0,093 cal/g
7. Melting heat 43,3 cal/g °C
8. Line expansion coefficient 18°C - 100°C 0,000017 °C
9. Dielectric withstand @ 20°C 0,017241 mm2/m
10. Withstand coefficient @ 20°C 0,00393 °C
11. Thermal conductance 340 kcal/mh°C
12. Resistance for stretching diameters  0,04 - 0,50mm 24-31 kg/mm2
13. Resistance for stretching diameters 0,51 - 3,00mm 19-27kg/mm2
14. Resistance for stretching diameters 3,01 - 6,00mm 16-24kg/mm2


Aluminium


1. Atomic weight 26,98
2. Atomic number 13
3. Weight @ 20°C 2,703 g/cm3
4. Melting temperature 650°C
5. Boiling temperature 2270°C
6. Specific heat 18°C - 100°C 0,23 kcal/kg °C
7. Melting heat 92,4 kcal/kg
8. Line expansion coefficient 18°C - 100°C 0,000024 °C
9. Dielectric withstand @ 20°C 0,027808 mm2/m
10. Withstand coefficient @ 20°C 0,0040 °C
11. Thermal conductance 187,2 Kcal/mh°C
12. Resistance for stretching diameters 0,04 - 0,50mm 9-10 kg/mm2
13. Resistance for stretching diameters 0,51 - 3,00mm 8-10 kg/mm2
14. Resistance for stretching diameters 3,01 - 6,00mm 7-10 kg/mm2

Wire comparison

For the same temperature and intensity

For the same conductance

Aluminium diameter= Copper diameter x 1,19

Aluminium diameter= Copper diameter x 1,27

Aluminium section = Copper section x 1,42

Aluminium section = Copper section x 1,63

Aluminium weight = Copper weight x 0,4

Aluminium weight = Copper weight x 0,5
