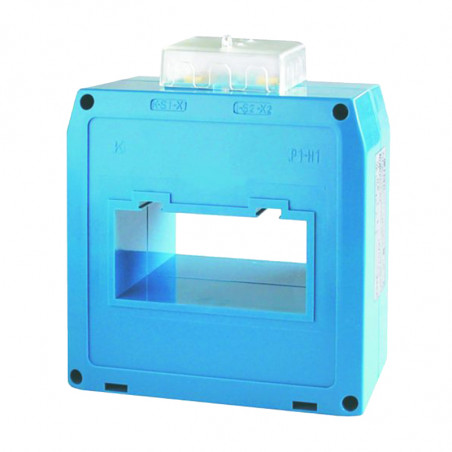

TAT082 current transformer on the 82x37mm rail

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <17W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/5 A 6 15

TAT082400X05
500/5 A 10 20

TAT082500X05
600/5 A 15 30

TAT082600X05
800/5 A 20 40

TAT082800X05
1000/5 A 20 40

TAT0821K0X05
1200/5 A 25 50

TAT0821K2X05
1500/5 A 40 80

TAT0821K5X05
2000/5 A 50 100

TAT0822K0X05
2500/5 A 60 120

TAT0822K5X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/1 A 6 15

TAT082400X01
500/1 A 10 20

TAT082500X01
600/1 A 15 30

TAT082600X01
800/1 A 20 40

TAT082800X01
1000/1 A 20 40

TAT0821K0X01
1200/1 A 25 50

TAT0821K2X01
1500/1 A 40 80

TAT0821K5X01
2000/1 A 50 100

TAT0822K0X01
2500/1 A 60 120

TAT0822K5X01



Secondary 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
400/5A 2 TAT082400J05 2 TAT082400Y05 5 TAT082400S05
500/5A 4 TAT082500J05 4 TAT082500Y05 6 TAT082500S05
600/5A 6 TAT082600J05 6 TAT082600Y05 8 TAT082600S05
800/5A 8 TAT082800J05 8 TAT082800Y05 8 TAT082800S05
1000/5A 12 TAT0821K0J05 12 TAT0821K0Y05 6 TAT0821K0S05
1200/5A 15 TAT0821K2J05 15 TAT0821K2Y05 8 TAT0821K2S05
1500/5A 18 TAT0821K5J05 18 TAT0821K5Y05 10 TAT0821K5S05
2000/5A 20 TAT0822K0J05 20 TAT0822K0Y05 12 TAT0822K0S05
2500/5A 20 TAT0822K5J05 20 TAT0822K5Y05 15 TAT0822K5S05



Secondary 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
400/1A 2 TAT082400J01 2 TAT082400Y01 5 TAT082400S01
500/1A 4 TAT082500J01 4 TAT082500Y01 6 TAT082500S01
600/1A 6 TAT082600J01 6 TAT082600Y01 8 TAT082600S01
800/1A 8 TAT082800J01 8 TAT082800Y01 8 TAT082800S01
1000/1A 12 TAT0821K0J01 12 TAT0821K0Y01 6 TAT0821K0S01
1200/1A 15 TAT0821K2J01 15 TAT0821K2Y01 8 TAT0821K2S01
1500/1A 18 TAT0821K5J01 18 TAT0821K5Y01 10 TAT0821K5S01
2000/1A 20 TAT0822K0J01 20 TAT0822K0Y01 12 TAT0822K0S01
2500/1A 20 TAT0822K5J01 20 TAT0822K5Y01 15 TAT0822K5S01



Secondary 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
400/5A 10 TAT082400K05 5 TAT082400L05 - -
500/5A 12 TAT082500K05 6 TAT082500L05 1.5 TAT082500M05
600/5A 15 TAT082600K05 7 TAT082600L05 2 TAT082600M05
800/5A 20 TAT082800K05 8 TAT082800L05 3 TAT082800M05
1000/5A 20 TAT0821K0K05 12 TAT0821K0L05 4 TAT0821K0M05
1200/5A 25 TAT0821K2K05 13 TAT0821K2L05 5 TAT0821K2M05
1500/5A 40 TAT0821K5K05 15 TAT0821K5L05 6 TAT0821K5M05
2000/5A 50 TAT0822K0K05 15 TAT0822K0L05 7 TAT0822K0M05
2500/5A 50 TAT0822K5K05 15 TAT0822K5L05 7 TAT0822K5M05



Secondary 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
400/1A 10 TAT082400K01 5 TAT082400L01 - -
500/1A 12 TAT082500K01 6 TAT082500L01 1.5 TAT082500M01
600/1A 15 TAT082600K01 7 TAT082600L01 2 TAT082600M01
800/1A 20 TAT082800K01 8 TAT082800L01 3 TAT082800M01
1000/1A 20 TAT0821K0K01 12 TAT0821K0L01 4 TAT0821K0M01
1200/1A 25 TAT0821K2K01 13 TAT0821K2L01 5 TAT0821K2M01
1500/1A 40 TAT0821K5K01 15 TAT0821K5L01 6 TAT0821K5M01
2000/1A 50 TAT0822K0K01 15 TAT0822K0L01 7 TAT0822K0M01
2500/1A 50 TAT0822K5K01 15 TAT0822K5L01 7 TAT0822K5M01


Dimensions
