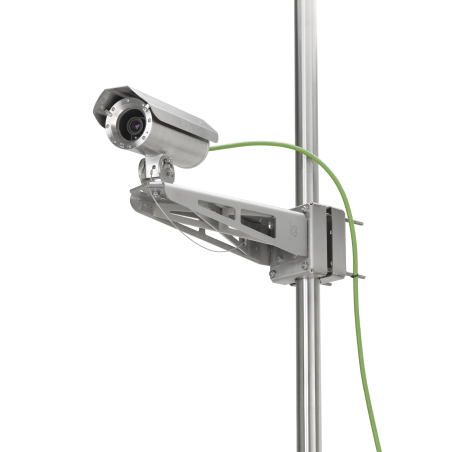

ExCam IPP1377 - Kamera cyfrowa do stref EX

The ExCam IPP1377 is a high-performance 5MP IP camera for use in hazardous areas - not only offering excellent HDTV resolution (2592 x 1944, 5MP), but also a powerful remote-controlled zoom and focus lens (i-CS). The ExCam series is certified according to European regulations (ATEX), as well as international regulations (IECEx), EAC-Ex, and many others.

Features.

• Wide range of hazardous area certifications (ATEX, IECEx, EAC-Ex, and others)
• Arctic temperature control (-60°C)
• Single cable solution (PoE / 24VDC)
• Ingress protection: IP68 (IEC 60529)
• High resolution: 2592x1944 (5 MP at 25/30 fps)
• Powerful remote zoom and focus
• Lightfinder and WDR technologies
• Easy integration with VMS
• Economical
• Extensive accessories

Explosion-proof IP camera with ATEX, IECEx, and EAC-Ex certifications

In addition to European regulations (ATEX), the ExCam series is also certified according to international regulations (IECEx) and the Russian Customs Union (EAC-Ex). Housing certification includes ATEX Group I (Mining) for low mechanical hazards and ATEX Group II (Gas and Dust) for zones 1, 2, 21, and 22, including explosion groups IIC/IIIC for high mechanical hazards. Furthermore, certification can be extended to various markets at any time. For example, in South Africa, this has already been achieved with MASC (Mining and Surface Certification).

During the design phase of the ExCam IPP1377, a clear emphasis was placed on safety aspects, as well as mechanical precision and high-quality stainless steel.

Regarding technical parameters, the ExCam series sets high standards in terms of media resistance and ambient temperature.

Media resistance and seals

Thanks to high-quality materials, the T07 is resistant to a wide range of media! The specially designed flat GYLON (PTFE) seal not only ensures the housing's waterproofness (IP68) but also supports resistance to many chemicals. Extremely durable, scratch-resistant, and impact-resistant borosilicate glass perfectly complements the high-quality materials of the housing body.

Temperatures

The permissible ambient temperature range of the ExCam IPP1377 camera starts from -60°C and reaches up to +60°C.

Lower installation costs and power supply via Ethernet (PoE)

A special feature of the ExCam IPP1377 is that data and power are transmitted over a single cable, meaning that only a PoE switch or PoE midspan is required for installation in a secure area.

Small housing - great resolution (HD)

With dimensions of only 396 mm long and 135 mm in diameter, the ExCam The IPP1377 is smaller than some cameras designed for safe areas, but with more advanced features. Thanks to progressive scan, the ExCam IPP1377 captures high-resolution 5MP images of moving objects at up to 30 frames per second: no motion blur! The ExCam IPP1377 delivers sharp images at 2592x1944 resolution.

Remote Zoom and Focus, Auto Iris

The ExCam IPP1377 features a remote zoom and focus lens and auto iris. This minimizes installation effort, which is especially important in hazardous areas. The camera mechanics' pixel count can ensure that the object's pixel resolution meets regulatory or customer requirements.

Day/Night Function

The ExCam IPP1377 features a day/night function, making it particularly suitable for use outdoors or indoors in low-light conditions. When brightness drops below a certain level, the camera automatically switches to night mode to produce high-quality black-and-white images using infrared. "Near" infrared light, with a wavelength between 780 and approximately 1000 nanometers, cannot be perceived by the human eye, but the ExCam IPP1377's image sensor can recognize and utilize it.

Airblade - for clear vision

The ExCam IPP1377 can be equipped with an airblade (optional accessory). The camera housing optics can be cleaned with air pressure.

Local Storage

The ExCam IPP1377 features a microSD/microSDHC slot for memory cards up to 64 GB (card not included), giving each camera an integrated recording device. The camera also supports active recording of streams to a central network directory (network storage or file server). The ExCam IPP1377 stores data independently, without the control of external computers.

Advantages of Digital Network Video Surveillance

The IP network video surveillance system offers many advantages and special features:

• Remote Access

• High Image Quality

• Event Management and Intelligent Video

• Easy, Secure, and Resilient Integration

• Scalability and Flexibility

• Cost-Effectiveness

Remote Access

Network cameras and video encoders can be accessed and configured remotely, allowing multiple authorized users to view live video at any time and from any network location worldwide. This is an advantage if you want to grant third-party users, such as a security company, access to video images.

High Image Quality

In video surveillance systems, high image quality is essential to clearly identify people or objects involved. Thanks to progressive scan and megapixel technology, the ExCam IPP1377 camera offers significantly better image quality and higher resolution than any analog CCTV camera. Furthermore, it is much easier to ensure image quality over an IP network than in an analog system. In current analog systems that use a recorder as a recording device, numerous data conversions from analog to digital and vice versa take place: first, the camera converts analog signals to digital data, which are then converted back to analog signals for transmission. The analog signals are then digitized again for recording. Each conversion procedure, as well as signal attenuation, affects image quality. The longer the transmission distance of these analog signals, the weaker the signal becomes. In a fully digital IP surveillance system, network camera images are digitized only once and then remain in digital format. This not only avoids unnecessary conversions but also image degradation caused by long network transmission distances. Furthermore, digital images can be easily stored and retrieved much more easily than with analog video tapes.

Event Management and Intelligent Video

Often, excessive amounts of video data are recorded without sufficient time to properly analyze them. Advanced network cameras and video encoders with integrated intelligence or analytics solve this problem by reducing irrelevant video recordings and initiating pre-programmed actions. Such features are not available in analog systems. The ExCam IPP1377 camera offers integrated features such as video motion detection, active tampering protection, and alarm and event management. Thanks to these features, network cameras and video encoders can continuously analyze input data to detect events and automatically respond—for example, by initiating video recording and sending alarm notifications. Event management features can be configured via the user interface or the web. Users can define alarms or events based on the trigger used and specify the period during which the event should be active. Additionally, actions can be configured (e.g., recording one or more locations, locally and/or remotely, activating external devices such as sirens, lights, and door openers, and sending notifications to users).

Easy, secure, and robust integration

Network video products based on open standards can be easily integrated with video management and application software.

Scalability and flexibility

A network surveillance system can grow with your needs. With IP-based systems, the same wired or wireless network can be used to exchange data between multiple network cameras and video encoders, as well as other types of applications.

Therefore, a variable number of network video products can be added to the system without requiring extensive or costly changes to the network infrastructure. This is not possible with an analog system. In an analog video system, a dedicated coaxial cable must be connected directly from each camera to the display/recording station. By comparison, network video products can be virtually placed anywhere and incorporated into any network. They can be open or tightly secured.

Cost-effectiveness

An IP surveillance system typically has lower total operating costs than a conventional analog CCTV system. In most cases, the IP network infrastructure already exists, making a network video application easy to integrate into existing infrastructure. Wired or wireless network solutions are also significantly less expensive than coaxial and fiber optic solutions for analog CCTV systems. Administrative and hardware costs are lower for back-end storage applications that are readily available off-the-shelf, virtually anywhere in the world.
