121.001.11 CONTROLLINO MICRO
121.001.11 CONTROLLINO MICRO

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Industrial Shields

121.001.11 CONTROLLINO MICRO

  • 121.001.11
  • Output 22
  • Input 36
  • Analog / Digital (A/D) 16
  • Isolated digital inputs 20
  • Digital outputs 14
  • Digital / PWM / Analog Outputs 8

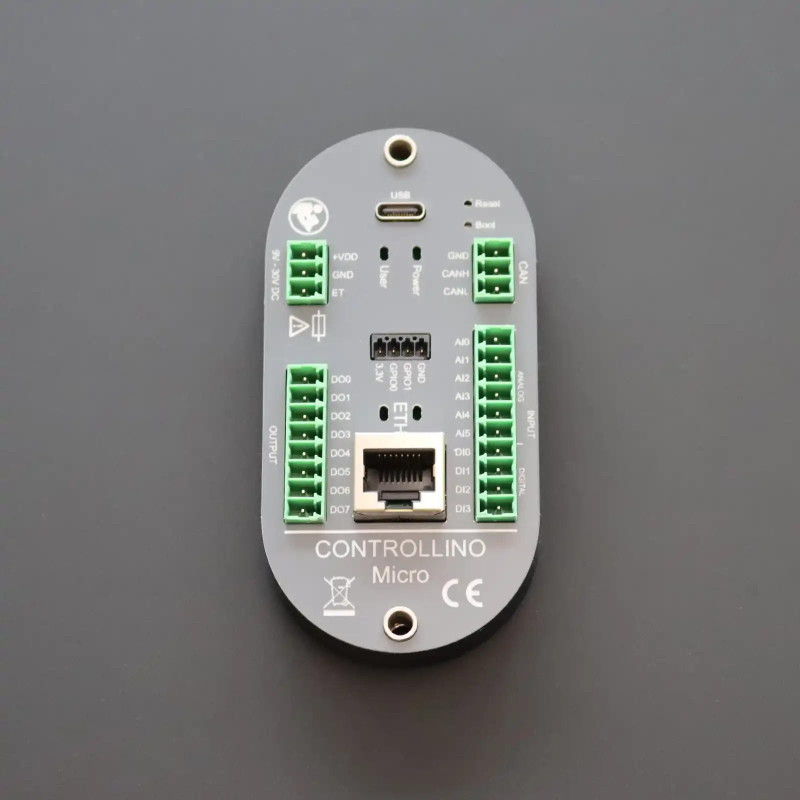

MICRO is our first product using a 32-bit microcontroller based on the very popular and Arduino-compatible RP2040 from Raspberry Pi. This is our smallest CONTROLLINO to date, but it is incredibly powerful for its size.

Microcontroller: 32-Bit (RP2040)

18x I/O in a minimal format.

6x Analog Inputs (24-bit resolution)

4x Analog or Digital Inputs (12-bit resolution)

8x Outputs (Half-bridge, max. 3A per channel, PWM)

Built-in current sensor to monitor the output current

Adjustable output current limit from 0.5A to 3A

Cryptographic Security: ECC608 Crypto Chip

Network: Ethernet Port with Wiznet W5500

Less
Read more
1,102.08 PLN
1,102.08 PLN Gross price / pcs.
896.00 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.
