Manufacturer: TM Induction Heating

Easytherm 30

  • easytherm 30

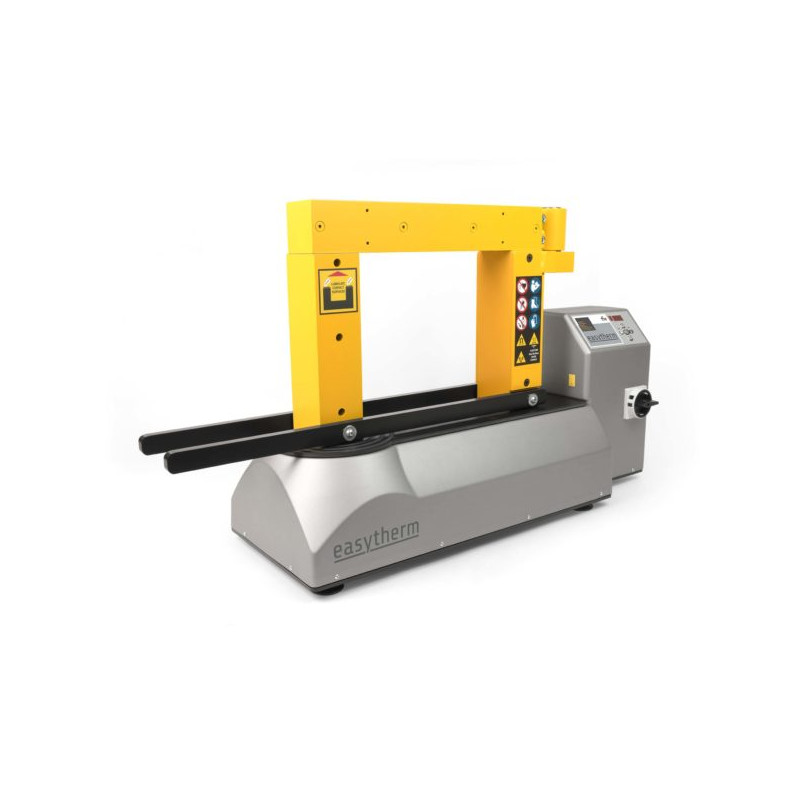

The Easytherm 30 is the largest induction heater in the Easytherm range. It is suitable for heating bearings with a maximum weight of 300 kg and an outer diameter of up to ø 660 mm. The standard version of the Easytherm 30 is designed for heavy-duty use in industrial production environments or in service/repair workshops. In addition to the temperature mode, our larger Easytherm induction heaters (ET 3.5, ET15, ET30) also feature a time-based heating mode.

The Easytherm 30 is supplied with 80 x 80 yokes and a magnetic temperature sensor with a length of 1000 mm. The ET30 can also be delivered with a trolley (optional). The trolley can store various bearings.

Specification Data
Power supply 400 - 460 V / 32 A / 50-60 Hz
Dimensions 807 x 307 mm
Max. temperature 240°C / 464°F
Weight (without yokes) 119 kg
Max. workpiece weight 300 kg
Max. outer diameter ø 660 mm
