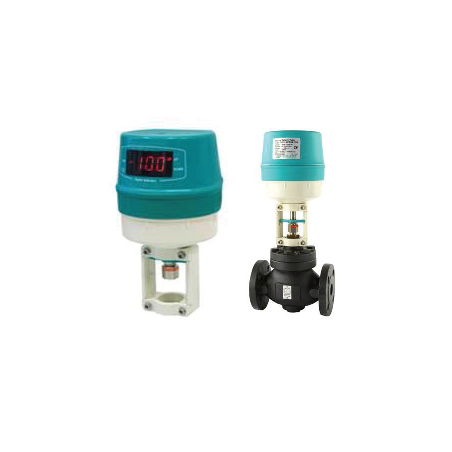

Electric linear actuator GEA-10SR
Electric linear actuator GEA-10SR

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GINICE KOREA

Electric linear actuator GEA-10SR


Features:

  • Suitable for emergency operation (power outage)

  • Electric linear proportional actuator
  • Travel range adjustable via self-adjusting function (activated by a button)
  • Minimum maintenance required due to the actuator's robust construction and reliable operation
  • The valve closes with a built-in spring in the event of a power outage
  • Selection of input signals: 4-20mA, 0-10VDC, or 2-10VDC
  • Use in steam, heating, ventilation, and air conditioning systems, and in moisturizing.


Technical Data

Nominal travel (mm) 20mm
Nominal force (kN) 1000N (1.0)
Response time (s) 75s (0.27mm/s)
Power supply (V) 24VAC or 220VAC ± 10%
Operating Mode Modulation
Input Signal 4~20mA, 0-10VDC to 2-10VDC
Output Signal Same as Input Signal
Operating Temperature -15 ~ 70℃
Humidity 5 ~ 95% Rh
Protection level IP 54 (DIN4050)
Cable connection PF1/2ｘ 1EA [&] PF3/8 X 1EA
Weight (Kg) 6.0Kg
