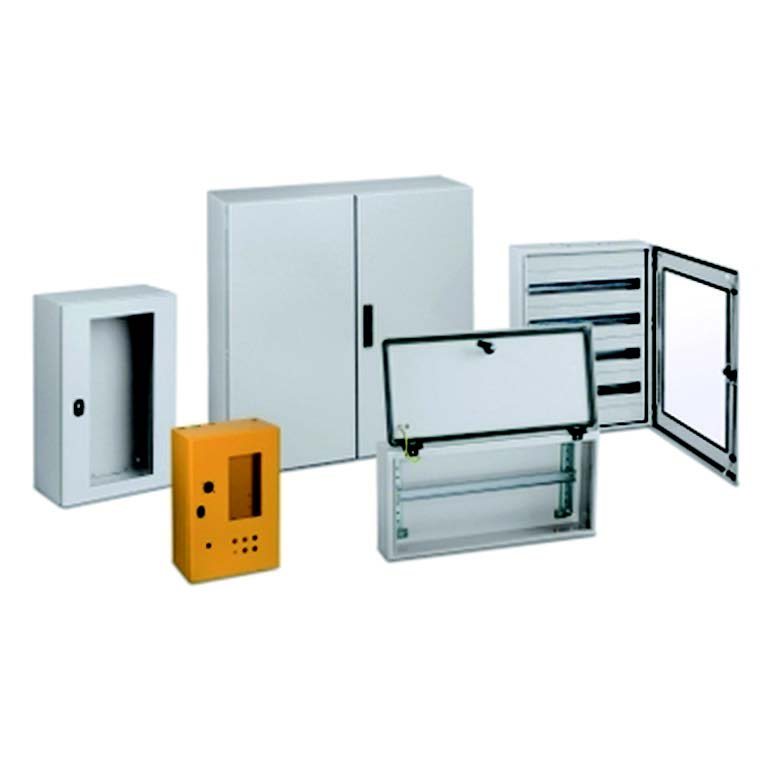

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Schneider Electric

Empty cabinet made of stainless steel S3DEX series

S3DEX Series Empty Cabinets


Universal steel wall-mounted enclosures - high durability, wide range. Spacial S3D is a universal steel wall-mounted enclosure designed for applications requiring high resistance to external and mechanical factors. These enclosures are made from a single sheet of steel, ensuring high rigidity and structural strength. A wide selection of accessories allows for adapting the enclosure to many applications. 1 front panel, lock: 3-point lock, 3 mm double-bar, material: steel, color: RAL 7035 - epoxy-polyester powder.

Standards:
  • EN 60079-0 : 2012
  • EN 60079-7 : 2007
  • EN 60079-31 : 2009
Technical data:
  • 2 II GD Exe IIC Gb Ex tb IIIC Db
  • IP66 single-door enclosures according to IEC 60529
  • IK10 according to IEC 62262
  • Material: steel
  • Color: RAL 7035

Dimensions


Height [cm] Width [cm] Depth [cm] S3DEX (empty cabinet) IP66 - IK10 - RAL 7035
300 200 150 NSYS3DEX3215
300 300 200 NSYS3DEX3320
400 300 200 NSYS3DEX4320
400 400 200 NSYS3DEX4420
400 600 200 -
500 400 200 NSYS3DEX5420
600 400 200 -
600 400 250 NSYS3DEX6425
600 600 250 NSYS3DEX6625
700 500 250 NSYS3DEX7525
800 600 300 NSYS3DEX8630
1000 800 300 NSYS3DEX10830
1200 800 300 -
