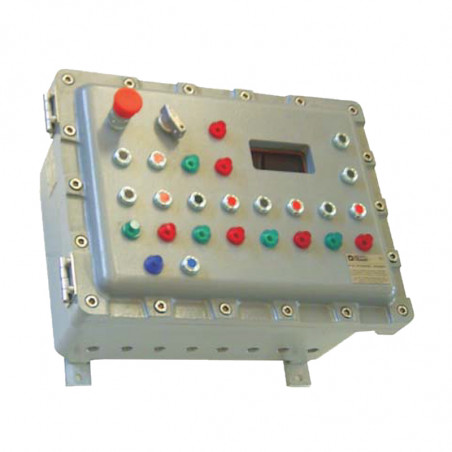

Containers series "EJB" with inspection windows
  • Containers series "EJB" with inspection windows
  • EJB series desktop with a revision window
  • EJB series desktop with a revision window

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: A.D. VIGANÒ

EJB series desktop with a revision window

The enclosures of series “EJB” are fitted with windows to visualize the electronics and electrical apparatus and instruments installed inside.


Type   Type of window applicable
* D E** F1 F1A F2 F2A F3 F3A F4 F5 F6 F6A F7 F7A F8 F9 F10
EJB2 72 74 X   X
EJB3 76 74 X   X   X
EJB3A 76 74 X   X   X
EJB4 80 74 X   X   X   X X X   X   X X
EJB4A 80 74 X   X   X   X X X   X   X X
EJB5-5A 90 99   X   X   X X X   X   X X X
EJB5A 90 99   X   X   X X X   X   X X X
EJB5B 90 99   X   X   X X X   X   X X X
EJB6 90 99   X   X   X X X   X   X X X X
EJB6A 90 99   X   X   X X X   X   X X X X
EJB7 94 109   X   X   X X X   X   X X X X
EJB7A 94 109   X   X   X X X   X   X X X X
EJB7B 94 109   X   X   X X X   X   X X X X
EJB8 100 109   X   X   X X X   X   X X X X
EJB8A 100 109   X   X   X X X   X   X X X X
EJB8B 100 109   X   X   X X X   X   X X X X
EJB9 150 109   X   X   X X X   X   X X X X
EJB9A 150 109   X   X   X X X   X   X X X X

Type   Type of window applicable
* D E** F11 F12 F12A F13 F13A F14 F15 F15A F16 F17 F18 F19 F20 F21
EJB2 72 74
EJB3 76 74
EJB3A 76 74
EJB4 80 74 X X   X
EJB4A 80 74 X X   X
EJB5-5A 90 99 X X   X     X   X
EJB5A 90 99 X X   X     X   X
EJB5B 90 99 X X   X     X   X
EJB6 90 99 X X   X   X X   X X
EJB6A 90 99 X X   X   X X   X X
EJB7 94 109 X   X   X X   X X X X X
EJB7A 94 109 X   X   X X   X X X X X
EJB7B 94 109 X   X   X X   X X X X X
EJB8 100 109 X   X   X X   X X X X X X X
EJB8A 100 109 X   X   X X   X X X X X X X
EJB8B 100 109 X   X   X X   X X X X X X X
EJB9 150 109 X   X   X X   X X X X X X X
EJB9A 150 109 X   X   X X   X X X X X X X

*D = distanza mimina tra finestra e filo esterno cassetta / minimun distance between windows and external box profile
**E = distanza minima tra finestra e operatori / minimun distance between windows and operators.

Containers series
Window
Window code FI F2 F3 F4 F5 F6 F7 F8 F9 F10 F11
Dimension 50x50 100x50 150x50 200x5 0 250x50 75x75 100x75 150x75 200x75 300x75 100x100
Window code F12 F13 F14- FI 5 F16 F17 F18 F19 F20 F21
Dimension 150x100 200x100 300x100 150x150 250x150 300x150 200x200 300x200 300x300 450x300
