Manufacturer: A.D. VIGANÒ

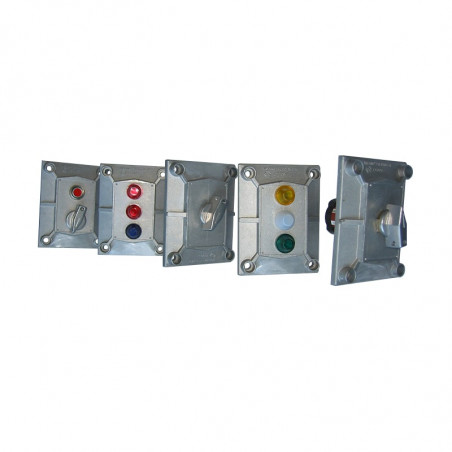

Aluminum cassettes series "EFDCS", EXD

Protection mode:
II 2GD Ex d IIB Ex tD A21 IP65 -40°C/-60°C to +40°C) T5 T100°C (Ambient temperature -40°C/-60°C to +60°C)
II 2GD Ex d IIB T6 Ex tD A21 IP65 T85°C (Ambient temperature -40°C/-60°C to +40°C)

Certificate:: ATEX, IECEx, GHOST-R.

Materials: enclosure in alluminium. Bolt and screws in stainless steel.
Painting:epoxy RAL 7037. For others colors, specify RAL type.
On request: lockable versione, push buttons with silicon rubber protected keys, with potentiometer
Cable entry: standard 2 entries 3/4”GK UNI6125. On request 1”GK, 3/4”NPT-1”NPT o M25-M32

Kasety aluminowe serii EFDCS, EXd

NOTE: Configure the customer's request.

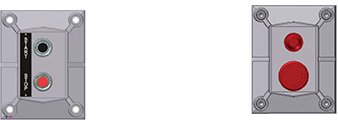

Example

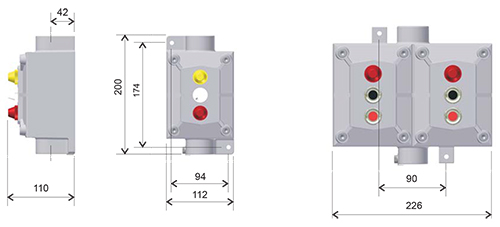

Kasety aluminowe serii EFDCS, EXd wymiar
