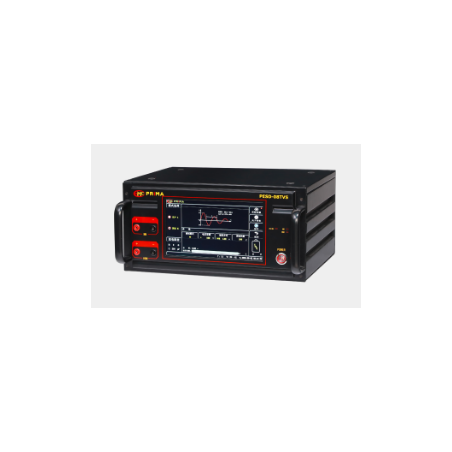

ESD simulator PESD-08TVS
ESD simulator PESD-08TVS

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EMC Prima

ESD simulator PESD-08TVS

  • PESD-08TVS

PESD-08TVS electrostatic discharge generator for semiconductors is specially designed taking into account the characteristics and requirements of the HBM human body model and the MM mechanical model in electrostatic discharge resistance tests. Used to evaluate the performance of electrical and electronic devices subjected to electrostatic discharge interference directly from operators and nearby objects.

Features:

  • Ergonomic design
  • Operation via 10.1-inch color touchscreen
  • Free switching of positive and negative polarity
  • Switchable between Chinese and English languages
  • Modes: custom, enhanced, and standard
  • Superior technology, durable
  • Maximum test voltage: up to 8kV
  • Intelligent air discharge fault detection
  • RJ45 and RS232 interfaces, remote control (optional)

Compliant with standards:

  • IEC60749-27-2012
  • ANSI-ESDA-JEDEC JS-001-2017

HBM:

Parameter Value / Description
Voltage Range 100V ~ 8000V ±10%
RC Model C: 100pF R: 1500Ω
Output Polarity +, -, +/-, -/+
Voltage Surge 0.0V ~ 2500.0V
Time Interval 1.00 ~ 99.99s
Number of Shocks 1c ~ 9999c
Trigger Mode Automatic

MM:

+, -, +/-, -/+
Parameter Value / Description
Voltage Range 100V ~ 800V ±10%
RC Model C: 200pF R: 0Ω
Output polarization
Voltage Surge 0.0V ~ 800.0V
Time Interval 1.00 ~ 99.99s
Number of Discharges 1c ~ 9999c
Mode Trigger Automatic
