Manufacturer: EMC Prima

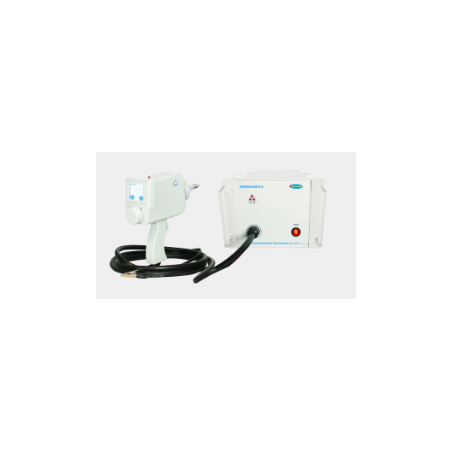

HESD61002TA ESD Simulator

  • HESD61002TA

HESD61002TA is a specialized generator designed for electrostatic discharge (ESD) immunity testing as part of electromagnetic compatibility requirements. Used to evaluate the performance of electrical and electronic devices exposed to ESD interference, both from operators and nearby objects.

Features:

  • Ergonomic design
  • Operation via a 10.1-inch color touchscreen
  • Free switching of positive and negative polarity
  • Switchable between Chinese and English
  • Modes: Custom, Enhanced, and Standard
  • Superior technology, durability
  • Maximum test voltage: up to 30kV
  • Intelligent air discharge fault detection
  • RJ45 and RS232 interfaces, remote control (optional)
  • Replaceable discharge module
  • Supports continuous 20pps scanning discharge mode.
  • Built-in real-time temperature, humidity, time, and high voltage display.
  • Freely replaceable discharge electrode.

Compliance with standards:

  • IEC61000-6-1
  • GR 1089
  • EN61326
  • GB/T17626.2 / EN / IEC61000-4-2
  • GB/T19951
  • ISO10605
  • IEC61340-3-1
  • ITU-T K.20
  • IEC61326

Parameters:

Parameter Value / Description
Contact discharge 200V ~ 20000V (±5%)
Air Discharge 200V ~ 20000V (±5%)
Voltage Range 0.20kV ~ 20.0kV ±5%
Voltage Surge 0.0kV ~ 10.0kV
Backup Time > 5 seconds
Output Polarity +, -, +/-, -/+
T&H Built-in Thermometer and Humidity Meter
Discharge Electrode Pointed Head (Contact Discharge) Rounded Head (Air Discharge)
Mode Discharge Contact Discharge, Air Discharge
RC Module Capacitance: 150pF Resistance: 330Ω
Repetition Rate Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger Mode Single, Manual, Automatic
Number of Pulses 1c ~ 60000c
Pulse Rise Time 0.6 ~ 1.0 ns
